JHL5255GJB Concrete mixer truck, concrete truck mixer 14CBM, 6*4,336Hp, Eaton pump, Bonfiglioli, PMP reducer - details see: https://www.machineto.com/jhl5255gjb-concrete-mixer-truck-10091911

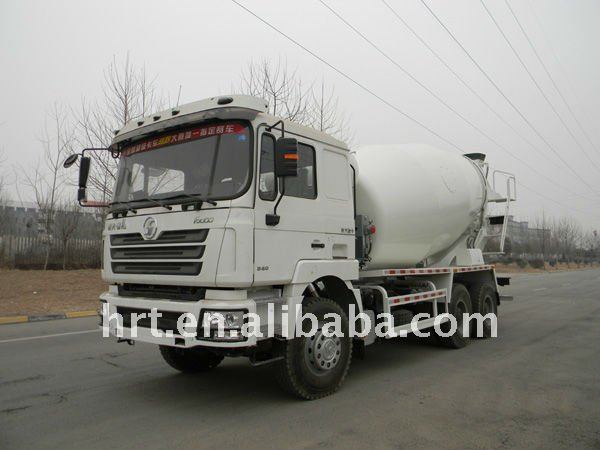

JHL5255GJB Concrete mixer truck
concrete truck mixer 14CBM
6*4,336Hp
Eaton pump
Bonfiglioli, PMP reducer

Using foreign advanced technology and after over ten years of technological improvements, now the products has become more perfect in performances, more reliable in quality, and more convenient in operation.

1. Feature one: The tank body uses double helical blades that makes its density moderate, with symmetrical mixing board on the front taper place; double blades and guiding blades

of discharge are installed on the outlet of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation of other devices (such as

automobile pump).

2. Feature two: The tank body adopts the domestic first submerged arc welding technology which makes it more solid in strength and more beautiful in appearance. The linked parts of

the tank body use bounded construction which can extend its service life. The seal head adopts German cold spinning technology that makes it sleek and fine in appearance. And

six reinforcement plates are installed inside the seal head and can increase its wear resistance.

3. Feature three: Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame uses high intensity square tube with damping in the central

area that can play role when vehicle is at full load and under the bad conditions of road, which can lower the center of gravity of truck and make it move more smoothly.

4. Feature four: The blades are extruded by more than 20 sets of molds, which can ensure the spiral curve and angle and spiral distance, and can achieve uniform mixing of concrete.

5. The upload production of this mixer adopts multiple advanced technology, which can produce various types of mixer in volume such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3and so on.

14CBM Delong CONCRETE MIXER TRUCK JHL5255GJB
Chassis model		SX5255GJBJR424
Max. running speed(km/h)		90,102
Drive System		6×4
Kerb weight(kg)		15600
Total mass(kg)		25000
Overall dimensions (mm)	Length	9880
	Width	2500
	Height	3995
	Capability (CBM)	14
Wheel base (mm)		4200+1350
Overhang (mm) (F/R)		1525/3175
Track width (mm) (F/R)		2036/ 1850
Engine		WP10.340E32 Diesel engine Euro3
Rated output horsepower		340 hp
Gearbox		9JS119
Steering		hydraulic steering with power assistance
Cab		NG90 with A/C & single sleeper
Axle		7000/18000 (Double axle co-load)
Tire(RADIAL TYRE)		11.00-20,11.00R20, 12.00-20,12.00R20
Tilt angle		10°
Rotating speed		0-16rpm
Water tank capacity		400L
Residual rate of discharge		<0.5%
Max. dimension of hopper(mm)		980
