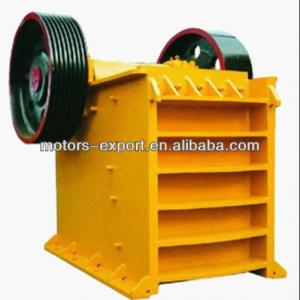

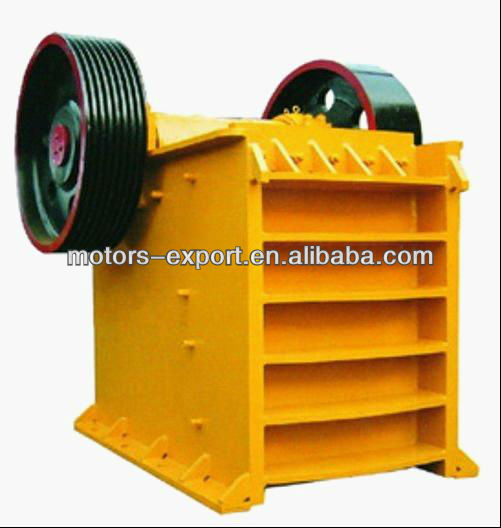

jaw crusher

Jaw Crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc. - details see: https://www.machineto.com/jaw-crusher-10311013

Condition:New	Type:Jaw Crusher	Application:crushing stone	Motor Type:DC Motor
Power(W):15kw-200kw	Capacity(t/h):10-500	Place of Origin:Zhejiang China (Mainland)	Brand Name:DOWODO
Model Number:PE	Dimension(LWH):11001000500MM	Weight:1000-100000KGS	Certification:CE, ISO,SGS
Warranty:ONE YEAR	After-sales Service Provided:Engineers available to service machinery overseas	COLOR:RED

Model	Max Feed size (mm)	Discharge Size(mm)	Capacity(m3/h)	Main Shaft Speed (r/min)	Power(KW)	Overall Dimension(mm)	Weight(Kg)
PE150×250	125	10-40	1-3	285	5.5	896×745×935	700
PE200×300	180	20-70	2-8	285	7.5	1256×1100×1120	800
PE250×400	210	20-80	3-13	300	18.5	1430×1310×1340	3000
PE400×600	340	40-90	10-40	275	30	1700×1732×1653	7200
PE500×750	425	50-100	34-68	275	55	2050×1860×2145	11320
PE600×900	500	75-200	45-120	250	75	2792×2168×2250	17600
PE750×1060	630	80-200	80-160	250	90	4180×2560×3070	30530
PF800×1060	680	100-200	80-160	250	90	4280×2560×3070	31500
PE900×1200	750	100-200	90-200	200	110	5200×2900×3500	50000
PEX150×750	125	10-40	5-15	300	15	1220×1480×1180	3600
PEX250×750	210	10-50	8-22	300	22	1400×1617×1412	4980
PEX250×1000	210	15-55	10-32	300	37	1580×1992×1380	7350
PEX250×1200	210	15-60	12-38	300	37	1530×2192×1380	8700
PEX300×1300	250	20-90	15-65	300	75	1930×2400×1747	11600

Jaw crusher series products are widely used in the departments of metallurgy, mine, construction materials, road, railway, irrigation works and chemical industry, etc. The crushing compressive strength of the different kinds of materials Should not exceed 350Mpa. PE series is used for primary crushing, PEX series is used for secondary crushing or fine crushing.
