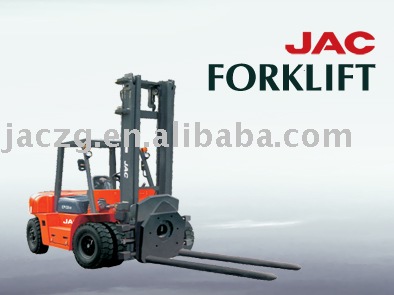

JAC diesel forklift 5t
No.3 biggest forklift manufacturer in China,JAC Heavy-Duty Company is a subsidiary company hold by JAC Group - details see: https://www.machineto.com/jac-diesel-forklift-5t-10109900
Condition:Used | Place of Origin:Anhui China (Mainland) | Brand Name:JAC | Model Number:CPC(D) 50 |
Type:Powered Pallet Truck | Power Souce:Diesel Engine | Rated Loading Capacity:1-10t | Max. Lifting Height:6m |
Min. Lifting Height:2m | Fork Length:1220mm | Certification:CE | color:you choose |
JAC diesel forklift 5t
Model | | CPCD50 | CPCD60 | CPCD70 | CPCD80 |
Load Capaciry Kg | Kg | 5000 | 6000 | 7000 | 8000 |
Load Center | mm | 600 | 600 | 600 | 600 |
Mast Lifting height | mm | 3000 | 3000 | 3000 | 3000 |
Mast Free Lift | mm | 190 | 160 | 205 | 210 |
Mastlifting Speed(With Load) | mm/s | 545 | 395 | 325 | 310 |
Tillifing Angles(Front/Rear ) | | 6°/ 12° | 6°/ 12° | 6°/ 12° | 6°/ 12° |
Driving Speed | km/h | 0-10,0-28 | 0-9.5,0-27 | 0-9.5,0-28 | 0-10,0-30 |
Drawbar Pulll(With Load) | KN | 65 | 60 | 60 | 57 |
Gradeability (With Load) | % | 32 | 32 | 28 | 21.2 |
Outside Turning Radius | mm | 3250 | 3370 | 3370 | 3950 |
Min intersecting aisle | mm | 2960 | 3000 | 3040 | 3540 |
Min Turning Radius With Load | mm | 195 | 200 | 200 | 245 |
Engine | Model | | chaoyang6102 | chaoyang6102 | chaoyang6102 | chaoyang6102 |
Rated Output | KW | 81 | 81 | 81 | 80.9 |
rating power speed | rpm | 2500 | 2500 | 2500 | 2500 |
Form Size | Overhead length | mm | 3440 | 3573 | 3573 | 4230 |
Overhead width | mm | 1990 | 1990 | 1990 | 2240 |
Overhead height | mm | 2500 | 2500 | 2500 | 2560 |
Overhead height (Outside of forks) | mm | 4420 | 4420 | 4420 | 4325 |
Wheelbase | mm | 2250 | 2250 | 2250 | 2800 |
Tread | Front-wheel drive | mm | 1470 | 1470 | 1470 | 1600 |
Trailing wheel | mm | 1700 | 1700 | 1700 | 1700 |
Overhang (front) | mm | 590 | 590 | 590 | 718 |
Fork | mm | 60x150x1220 | 60x150x1220 | 60x150x1220 | 80x175x1220 |
Weight | kg | 8160 | 9040 | 9410 | 10960 |
Packaging Detail:naked |
Delivery Detail:15days after downpayment |
