Gold ore grinding machine, 1. Both dry and wet grinding types available, 2. Longer linning service life, 3. Low consuming - details see: https://www.machineto.com/iso9001-approval-gold-ore-grinding-machine-10314269

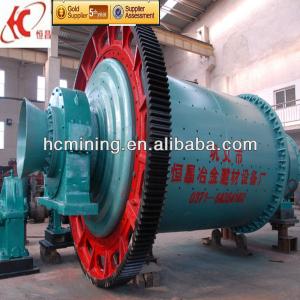

ISO Quality Gold Ore Grinding Machine

About our factory:

Hengchang is a professional ball mill manufacturer in China, welcome you visit our company to know more about us.

Gold Ore Processing Machine Brief Introduction:

Gold ore processing machine ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type.

There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

Gold Ore Processing Machine Working Principle:

Gold ore processing machine is a horizontal rotating device transmitted by the outer gear.

The materials are transferred to the grinding chamber through the quill shaft uniformly.

There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.

The ground materials are discharged through the discharging board thus the grinding process is finished.

Gold Ore Processing Machine Features

1) Gold ore processing machine is an efficient tool for grinding many materials into fine powder;

2) The gold ore processing machine is used to grind many kinds of mine and other materials, or to select the mine;

3) Gold ore processing machine is widely used in building material, and chemical industry.

4) There are two ways of grinding: the dry way and the wet way.

5) Gold ore processing machine can be divided into tabular type and flowing type according to different expelling mine

6) To use the gold ore processing machine, the material to be ground is loaded into the neoprene barrel that contains grinding media.

7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

8) The longer the ball mill runs, the finer the powder will be.

9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals

Gold Ore Processing Machine Technical Data:

model	Speed of bucket (r/min)	Weight of ball	Size of feed opening(mm)	size of outputting feed (mm)	Production (t/h)	Power (kw)	Weight (T)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.074-0.4	2-5	90	17
1500×5700	27	15	≤25	0.074-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.074-0.4	4-10	180	28
1830×6400	24	23	≤25	0.074-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.074-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.074-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.074-0.4	14-26	380	52.8
2200×7500	21	33	≤25	0.074-0.4	16-29	475	56

Payment terms:

1. We usually accept T/T, L/C;

2. T/T: 30% in advance as down payment, the balance before delivery;

3. We take pictures of finished products before delivery.

Ways of Packing:

1.Sand blasting, coat with high quality paint;

2.Product wrap by PP-Bubble

3.Load container, Spear Parts in wooden case.

Transportation:

1. By sea Freight;

2. MSK/MSC/APL/EMC/WANHAI/KLINE

3. We will remind you before boat arrival

Our Service:

1) Pre-sale Service:

Design the suitable products and offer the reasonable consultation to meet your need by our engineer.

We can also offer experiment to test the equipment that the customer need.

2) After-sale Service:

On the spot guidance for installation by our engineers, and the buyer is responsible for the expense.

We have a perfect after-sales service system and team with professional and for whole using life.

Our price are most competitive and reasonable, all order will be supplied within the stipulated period.

Our International Customers:

Factory Honors:

Thank you for your interest in Gongyi Hengchang Metallurgy Building Material Equipments Plant.

We look forward to new and old customers come to visit, study, trade negotiations, and we would like to cooperate and develop with you hand in hand.

Please feel free to use any of the methods to get in touch with us.
