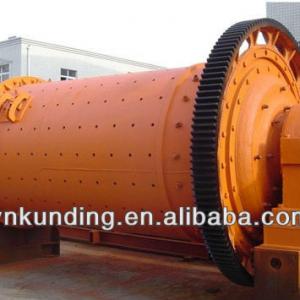

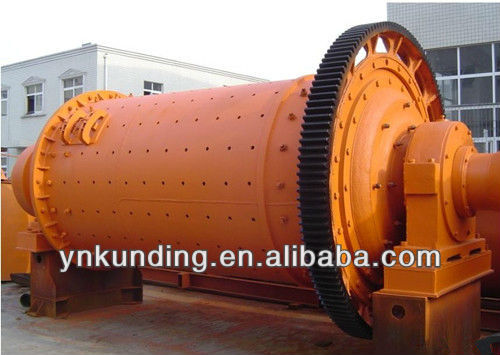

ISO Quality Approve ball mill

ISO Quality Approve ball mill, 1.Dry and wet grinding types are available, 2.High grinding ratio ball mill, 3.negotiable price - details see: https://www.machineto.com/iso-quality-approve-ball-mill-10314054

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18.5kw
Capacity(t/h):0.65-2	Place of Origin:Yunnan China (Mainland)	Brand Name:KDM	Model Number:900*1800
Weight:4.6t	Certification:ISO9001:2008,CE	Warranty:one year warranty	After-sales Service Provided:Engineers available to service machinery overseas
Ball load(t):1.5	Feeding size(mm):≤20	Discharging size(mm):0.075-0.89	model:variety
spare parts:for whole life	usage:grinding materials

Kundingball mill, an efficient tool for fine finishing, is made of fine materials skillfully. It can grind many kinds of ore and other materials.

ball mill Application:

widely used inpowder-making production lineincluding cement, silicate, new-type building material, refractory material, chemical materials, ore dressing, ferrous metal and non-ferrous metal, glass ceramics industries, etc.

ball millOperating Principle

ball mill consists of a horizontal cylindrical shell, provided with renewable wearing liners and grinding medium-steel balls. Inside the low-speed rotating shell, steelballscling to the liner under the influence of inertia, friction and centrifugal force. Then they will be taken to a certain height and thrown down due to the gravity and centrifugal force. In this process, the materials continuously dropped from one end of the cylinder will be smashed by the balls. In adittion, both the balls and materials will be rolling and sliding irregularlly together. Therefore, the materials will become finer and finer.

ball mill technical parameters

model	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Motor power(kw)	Weight(t)
Φ900×1800	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
Φ900×3000	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
Φ1200×2400	3	≤25	0.075-0.6	1.5-4.8	30	12
Φ1200×4500	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Φ1500×3000	7.5	≤25	0.074-0.4	2-5	75	15.6
Φ1500×5700	12	≤25	0.074-0.4	3.5-6	130	24.7
Φ1830×3000	11	≤25	0.074-0.4	4-10	130	28
Φ1830×7000	23	≤25	0.074-0.4	7.5-17	245	36
Φ2100×3000	15	≤25	0.074-0.4	6.5-36	210	34
Φ2100×7000	26	≤25	0.074-0.4	8-48	280	50
Φ2200×7500	35	≤25	0.074-0.4	15-28	380	56
Φ2400×4500	30	≤25	0.074-0.4	8.5-60	320	65
Φ2700×4500	48	≤25	0.074-0.4	12-90	430	102
Φ3200×4500	65	≤25	0.074-0.4	25-130	800	137
