ISO Certification Energy Saving Ball Mill
| Condition:New | Type:Ball Mill | Motor Type:AC Motor | Power(W):18.5-1250KW |
| Capacity(t/h):0.22-187t/h | Place of Origin:Shandong China (Mainland) | Brand Name:Zhaoxin | Model Number:GM-series |
| Dimension(L*W*H):4750*221*2050(mm)-15200*7750*6300(mm) | Weight:4620kg-159700kg | Certification:ISO9001:2008 | Warranty:one year(except wearing parts) |
| After-sales Service Provided:Engineers available to service machinery overseas | rotation speed of motor:140-735r/min | weight with balls:0.96-120t | effective volume:0.45-55.7m3 |
| power:18.5-1600KW |

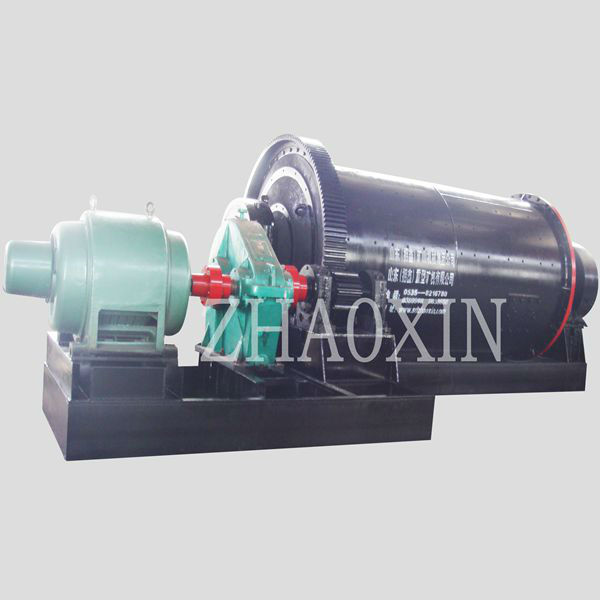

Ball Mill
Features of ball mill
1.This type of ball mill is a kind of traditional ball mill,with rolling bearings(Babbit metal bearing bushing seat)
2.Simple structure, and split installation.
3.It is easy to lift it while installing and maintaining.
4.Its feeders are classified into two types:combined feeder and cylinder feeder.
Notes for ordering
1.While placing your order,please specify the model,quantity,and the rotating direction as well.
2. Since the ball mills are classified into two types:grate ball mill and overflow ball mill,please specify the type.
Technical parameter of ball mill
Model | The shell (r/min) | Weight with balls (t) | Size of supplying mineral(mm) | output t/h | Motor | Weight kg | |
| Model | Power (KW) | ||||||
| GM0912 | 41.6 | 1.1 | 25 | 0.3~0.9 | Y180L-8 | 11 | 4210 |
| GM0933 | 41.6 | 2.8 | 25 | 0.9~2.3 | Y225M-6 | 30 | 7770 |
| GM1228 | 35.1 | 4.6 | 25 | 1.9~4.8 | Y280M-8 | 45 | 10935 |
| GM1244 | 35.1 | 7.3 | 25 | 3.0~7.5 | Y135S-8 | 55 | 13210 |
| GM1334 | 30.2 | 6.5 | 25 | 2.2~5.0 | Y280M-8 | 75 | 13117 |
| GM1524 | 30.7 | 7.0 | 25 | 2.8~6.5 | YR280S-8 | 55 | 15430 |
| GM1545 | 30.7 | 13.5 | 25 | 5.5~13.5 | JR127-8 | 110 | 20000 |
| GM1830 | 25.04 | 13.0 | 25 | 3.0~17.0 | JR128-8 | 130 | 29490 |
| GM1864 | 25.04 | 27.0 | 25 | 8.0~40.0 | JR137-8 | 210 | 42440 |
| GM2145 | 23.8 | 23 | 25 | 5.2~40.0 | JR138-8 | 245 | 47000 |
| GM2160 | 23.8 | 28.5 | 25 | 5.8~40.5 | JR138-8 | 380 | 52000 |
| GM2430 | 23.0 | 20 | 25 | 6~75 | JR1413-8 | 280 | 59850 |
| GM2436 | 23.0 | 26.6 | 25 | 6.5~82 | JR1413-8 | 280 | 63684 |
| GM2736 | 21.7 | 34 | 25 | 15~115 | JR158-8 | 380 | 88400 |
| GM2742 | 21.7 | 40 | 25 | 17.5~135 | JR1512-8 | 400 | 90420 |
| GM3230 | 18.7 | 44 | 25 | 50~90 | TDMK500-36 | 500 | 124000 |
The ball mill what we have send to Mexico:
The ball mill what we have send to USA:
The ball mill what we have send to Australia:
Pictures Of Ball Mill:
Lining board
Cylinder:
End cover
Delivery goods
Welcome you come to visit our company
Our company is specializing in the manufacture and export of mining equipments such as feeder machine, crusher, ball mill, flotation machine, agitator tank, magnetic separator ect.
In addition, our company has gained ISO9001:2008 quality system certificate and so many patent certificates to ensure our products to meet international standards.We have exported mining machines to many other countries, for example, Sudan, Malaysia, Romania, Korea, Australia, Mexico, Philippines, Taiwan etc.
| Packaging Detail:no packaging or according to your requirement |
| Delivery Detail:within 15 days after we receive 30% advance payment by T/T |
