YUHONG Cement Ball Mill/Ball Mill:, 1. CE, ISO9001:2008, 2. Capacity: 6.5-35t/h, 3. Weight:3.6-73t - details see: https://www.machineto.com/iso-ce-approved-yuhong-cement-ball-mill-ball-mill-machine-10314113

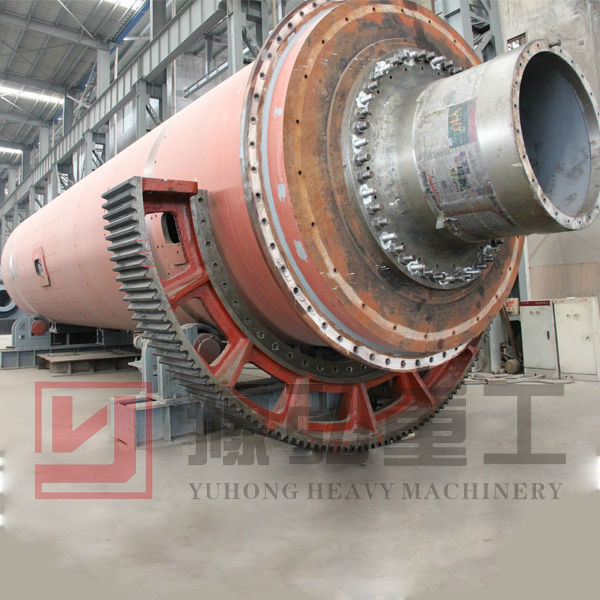

YUHONG Cement Ball Mill/Ball Mill Machine

Cement Ball Millis major equipment of cement plant and used for drying and grinding coal. The equipment is mainly consisted of feed device, main bearings, rotating parts, drive device, selling device, high-voltage start-up device and lubrication system. The raw material is fed into mill by feeding equipment. The hot wind enters into the mill by inlet end. As the mill cylinder rotates, the coal and hot air exchange heat in the mill. The coal is crushed and grinded in the mill. When the coal is being grinded, the powder is brought out of the mill by the hot air going through the mill.

Cement Ball mill structure

Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The ball mill has the features of stable running and reliable working.

Product Parameter

Model	The chamber speed (r/min)	Ball Load (t)	Feed In size (mm)	Feed out size (mm)	Output (t/h)	Motor		Weight (t)
						Type	Power ( kw)
900 ×1800	38	1.5	≤ 20	0.075-0.89	0.65-2	Y2001L-6	18.5	3.6
900 ×3000	38	2.6	≤ 20	0.075-0.89	1.1-3.5	Y200L2-6	22	4.6
1200 ×2400	35	3.5	≤ 25	0.075-0.6	1.5-4.8	Y250M-6	37	11
1200 ×3000	35	5	≤ 25	0.075-0.4	1.6-5	Y280M-6	45	13.8
1200 ×4500	35	75	≤ 25	0.075-0.4	1.6-5.8	Y280M-6	55	14
1500 ×3000	27	8	≤ 25	0.075-0.4	2-5	Y315M-8	75	15
1500 ×4500	27	12	≤ 25	0.075-0.4	3-6	JR125-8	95	18
1500 ×5700	27	15	≤ 25	0.075-0.4	3.5-6	JR127-8	130	21.7
1830 ×3000	24	12	≤ 25	0.075-0.4	4-10	JR128-8	185	28
1830 ×6400	24	23	≤ 25	0.075-0.4	6.5-15	JR138-8	210	34
1830 ×7000	24	25	≤ 25	0.075-0.4	7.5-17	JR137-8	245	36
2100 ×6500	21	31	≤ 25	0.075-0.4	14-26	JR1-144-8	355	52.8
2200 ×7000	21	37.6	≤ 25	0.075-0.4	15-28	JR1-145-8	400	56
2400 ×7000	19.1	45	≤ 25	0.075-0.4	16-30	JRL15-8	475	62.8
2700 ×7000	18	61.8	≤ 25	0.075-0.4	18-35	JR1-154-8	710	73
