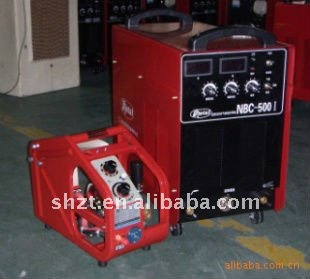

Inverter CO2 / MIG Welder

convenient for automatic welding, Inverter Semi-Automatic CO2 / MIG Welder - details see: https://www.machineto.com/inverter-co2-mig-welder-10136467
Place of Origin:Shanghai China (Mainland)Brand Name:HutaiModel Number:NBC-500IGBTDimensions:700*680*380
Weight:55 kgUsage:Application involving mild steel and low alloy steel materials
Inverter CO2 / MIG Welder
contact supplier for Inverter CO2 / MIG Welder


Features

Adopting IGBT inverter technology, with stable output and strong anti-electricity fluctuation capability

Reduce costs, increase efficiency and improve the welding quality

Simply operation, economical and practical

High welding speed with high success rate of arc ignition

With small spatter, deep molten pool and beautiful welding seam

Suitable for various welding wire such as carbon steel, alloy steel, mild steel, etc.

Suitable for welding the plate with thickness more than 0.8mm

Technical Parameters

Item \ ModelNBC-500(IGBT)
Input power voltage(V)AC380(three phase)
±15%
Rate input power capacity(KVA)24
Input voltage frequency(Hz)50/60
Rated output current(A)37
Output current range(V)17-39
Output voltage range(A)60-500
Diameter of wire(mm)1.0-1.6
Duty cycle (%)(25°C)60
Efficiency(%)92
Power factor(COSφ)0.89
Weight(KGS)55
Overall dimension(mm)700*680*380
Suitable thickness of plate>1.2

Inverter CO2 / MIG Welder
Packaging Detail:wooden/carton box
Delivery Detail:Within 20days after receiving the deposit
