industrial machinery xzm mill,industrial mill,mill machinery

XZM mill machine, super fine mill, 1.Reliable., 2.High capacity., 3.Low cost. - details see: https://www.machineto.com/industrial-machinery-xzm-mill-industrial-mill-mill-machinery-10314767

Condition:New	Type:Other,Mill	Capacity(t/h):Various	Place of Origin:Shanghai China (Mainland)
Brand Name:Zenith	Model Number:XZM mill	Guarantee/Warranty:Quality approvals	Application:Ore

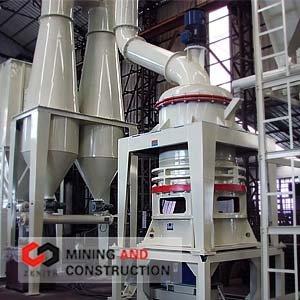

Industrial machinery xzm mill,industrial mill,mill machinery

Zenith XZM mill machinemill is widely used in makingfine powder or micro powder, a new kind of machine for producingfineness and ultra-powder. It is an important industrial machinery. It is mainly used for grinding the materialwith middle and low hardness, below 6% moisture, and the materialshould be non-explosion and non-flammability, such as: calcite, chalk,limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite,iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite,barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassiumore pumice, etc. The size of the finished production can be adjustedbetween 325-2500 mesh.

Ultrafine mill Features:

1. Reliable
2. High capacity and low cost
3. Easy adjustment of product fineness
4. Clean, environmental protection

Ultrafine mill Technical Data:

Tab 1:
item	XZM215	XZM221	XZM227
Number of roller(piece)	15	21	27
Ring diameter(mm)	Φ600	Φ 800	Φ1000
Number of ring (piece)	2	2	2
main equipment rotate speedr/min	235	235	235
Max. inlet sizemm	<10	<10	<10
Final size (mesh)	3252500	325-2500	325-2500
Capacitykg/h	350-2500	6004000	9006000
Overall sizem	10×2×5.5	12.4×2.5×5.8	14.5×3.8×6.3
Note: If there is any change of above specification, it is all according to the booklet with machine.

Tab2:
Basic data	Item	Unit	specification
Basic data	Item	Unit	XZM215	XZM221	XZM227
motor of main machine	Model	-	Y250-4	Y250-4	Y250-4
motor of main machine	Power	kw	37	55	90
classify Frequency modulation motor	Model	-	Y180M-4	Y180M-4	Y180M-4
classify Frequency modulation motor	Power	kw	11	18.5	30
Motor of elevator	Model	-	Y100L-4	Y100L-4	Y100L-4
Motor of elevator	Power	kw	3	3	3
Motor of blower	Model	-	Y225M-2	Y225M-2	Y225M-2
Motor of blower	Power	kw	30	45	75
Hammer crusher	Model	-	250-400	250-400	250-400
Hammer crusher	Power	kw	5.5	5.5	5.5
Electromagnetism Vibrating feeder	Model	-	GZ1F	GZ1F	GZ1F
Electromagnetism Vibrating feeder	Power	kw	0.06	0.06	0.06
discharge valve	Model	-	ZJD-140	ZJD-140	ZJD-140
discharge valve	Power	kw	0.75	0.75	1.1
Pulsed duster	Model	-	BMC72-11	BMC72-11	BMC72-11
Pulsed duster	Power	kw	3	3	3
Note: If there is any change of above specification, it is all according to the booklet with machine.
