Industrial glass washing machine, 1.OEM service, 2.CE certification, 3. Glass thickness: 3-25mm - details see: https://www.machineto.com/industrial-glass-washing-machine-10330866

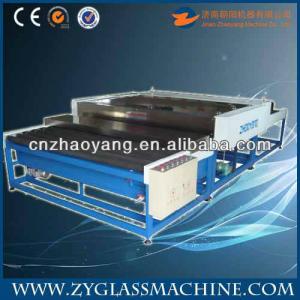

Industrial glass washing machine

Function & Distinction:

This machine can be cleaned thickness 3-25mm flat glass, horizontal structure of the machine, it's composed of feed section, roller brush cleaning, drying section, outlet section. It is ofter used with glass tempering furnace and laminating production line.

Technical Parameters:

Power supply: 380v

Frequency: 50 hz

Total power: 14kw

Min glass size : 200*500mm

Max glass size: 2500*3000mm

Glass thickness: 3-25mm

Dimension: 6500*3000*2700mm

Frequency: 50 hz

Total power: 14kw

Min glass size : 200*500mm

Max glass size: 2500*3000mm

Glass thickness: 3-25mm

Dimension: 6500*3000*2700mm

F

Model	Max Glass(mm)	Min Glass(mm)	Washing Glass Thickness(mm)	Glass Washing Speed	Power	Outlook Dimension
BXWJ2500	2500*3000	200*500	4-50	0-5m/min	380v 50HZ 14kw	5500*3000*1200
BXWJ1800	1800*3000	100*400	1.8-12	0-5m/min	380v 50HZ 12kw	4500*2400*1200
BXWJ1600	1600*2000	100*400	3-18	0-3m/min	380v 50HZ 5kw	2800*2150*1100
BXWJ1500	1200*2000	400*200	3-5	0-6m/min	380v 50HZ 24kw	3500*2100*2200
BXWJ1200	1200*2500	100*200	1.8-8	0-5m/min	380v 50HZ 8kw	2500*1600*900
BXWJ1200B	1500*1200	600*400	3-5	0-6m/min	380v 50HZ 23kw	4800*1600*2300
BXWJ800	800*200	50*100	1.8-8	0-5m/min	380v 50HZ 6kw	2100*1200*900

Features:ure:

1)All the cleaning parts and installation (including heating flange, temperature sensors, pipe, tank, etc.) are made of high-quality stainless steel material. It can be anti-corrosion, the water cycle doesn’t plug, not rust.

2)Adopt the supply water systems of two-grade filtered of two-pump cycle, The clear and turbid water is distributors, and recognizes conservation of water.

3)There were six brush cleaning match, forced brushing to make the glass cleanness better.

4) Three sucking water rollers are made of the quality polymer material, It has a strong capacity to suck water, longer life

5)The rubber roller is made up of special rubber ,formed by the grinding, good wear resistance, anti-aging, high accuracy.

6)The slide way tank with telescopic can freely drive ,very convenient to input water and inspect the water quality

7)Water tanks with steel glass plate can freely push and pull to prevent the dust submerged water source

8)The shelf is made of high-quality carbon steel material. The thickness of tube is 2.5 mm . The shelf is handled to spray and coat.

9)Adopt integrated equipment (the whole glass line will be conveyed roller), so the operation is much easier, more advanced.

Payment and Shipment:

Payment:Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

Package: Each PC in wooden cases.

Port of Loading: Qingdao, China

Delivery Time: During 15-35 days after we receive your first payment.

Shipment:Usually by sea, the machine is dismountable, so it can be packed in a small container.
