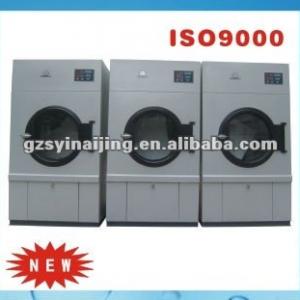

industrial garment tumble dryer manufacturer
Condition:New | Type:Drum Drying Equipment | Place of Origin:Guangdong China (Mainland) | Brand Name:ENEJEAN |
Model Number:YHG | Voltage:220v/380v,380v | Certification:ce , iso | Warranty:1 year |
After-sales Service Provided:No overseas service provided | Construction:Stainless steel | Color:gray | Heating:steam heat |
Multifunction:electrical or coal dryer | How to supply the power:as you like | Special:you could make a heating stove | Professional:teach you free when you order |
Force:powerful factory | Quality:high quality |
industrial garment tumble dryer manufacturer
1.dries the clothes within the aircraft gallbladder to use the import high quality stainless steel to manufacture carefully ,the entire drying process automatic control ,the precise digital feeling warm measuring appliance demonstration temperature, may avoid accident's occurrence in the operating process ,has the steam heating ,the electric hearing two kind of models
2.Thermal efficiency is low, the easy to operate ,uses the high efficiency heater ,the heat change is quick
the heat energy uses high ,
3.uses the large diameter to install the clothes gate ,loads and unloads the clothing to be convenient,
4.the big area plush collection network the large diameter wind leaf ,by the plush jamming ,had been guaranteed not easily the air flue is unimpeded ,
5.the entire computer control may the accuracy control time and the drying temperature, the computer kneading board uses touches the type pressed key lightly, the operation is flexible .
Model | YHG-15 | YHG-25 | YHG-35 | YHG-50 | YHG-100 |
Rated capacitance(kg) | 15 | 25 | 35 | 50 | 100 |
Cage diameter(mm) | 750 | 970 | 970 | 1180 | 1500 |
Cage size deep(mm) | 645 | 670 | 1000 | 890 | 1090 |
Power supply(v) | 380 | 380 | 380 | 38 | 380 |
Charger power( Kw) | 0.55 | 0.75 | .75 | 1.1 | 2.2 |
Fan power( Kw) | 0.55 | 0.75 | 0.75 | 1.1 | 1.5*2 |
Electric heating power (Kw) | 14.8 | 20.25 | 23.4 | 39.6 | |
Into the steam mouth diameter (mm) | 1.5 | G11/2i | G11/2i | G11/2i | 2i |
Hydrophobic orifice diameter (mm) | 1.5 | G11/2i | G11/2i | G11/2i | 2i |
Rated steam pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Dimension (length)( mm) | 840 | 1060 | 1060 | 1310 | 1620 |
Dimension (width)( mm) | 1180 | 1250 | 1560 | 1550 | 1550 |
Dimension (High)(mm) | 1700 | 2000 | 2000 | 2200 | 2460 |
Machine weight( kg) | 400 | 450 | 480 | 510 | 750 |
Industrial dryer/laundry drying machine
GZP/GDZ-15A/B
steam heated
Model | GZP-15A/B | GZP-25A/B | GZP-35 | GZP-50 | GZP-70 | GZP-100 | |
capacity(kg) | 15 | 25 | 35 | 50 | 70 | 100 | |
Power request(v/HZ) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | |
Roller size(mm) | 780*600 | 980*640 | 980*950 | 1150*980 | 1340*1070 | 1540*1070 | |
steam | Gas pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Water extractor | Steam consumption | 30 | 35 | 40 | 70 | 85 | 120 |
Air outlet size(mm) | 190*190 | 220*220 | 220*220 | 240*240 | 240*240 | 260*260 | |
Overall dimension(mm) | 1100*880*1550 | 1170*1070*1870 | 1360*1070*1820 | 1440*1250*2050 | 1630*1440*2250 | 1650*1620*2250 | |
Machine weight(kg) | 270 | 320 | 350 | 500 | 750 | 900 |
Packaging Detail:Wooden packing |
Delivery Detail:7-20Days |
