1.2.5ton mini forklift, 2.CURTIS or SEVCON controller, 3.Sing pump system, 4.DCDC commutator, 5.heighten air inle - details see: https://www.machineto.com/hyundai-mini-forklift-truck-10110039

1. Our 2.5 mini electric forklift is equipped with excellent electric instruments imported from South Korea, having the reliable work property, the heightened air inlet port being far away from dust make the air filter draw clean air, then improve the efficiency of engine, and extend the working life of engine.

2. we adopt the rubber suspension system, the advanced dual suspension system reduce the vehicle vibration, and lowered the noise, provide the comfortable working environment.

3. our mini forklift is equipped with A series new environment friendly engine, not only having the perfect dynamic property, but also improving the fuel economy of the vehicle.

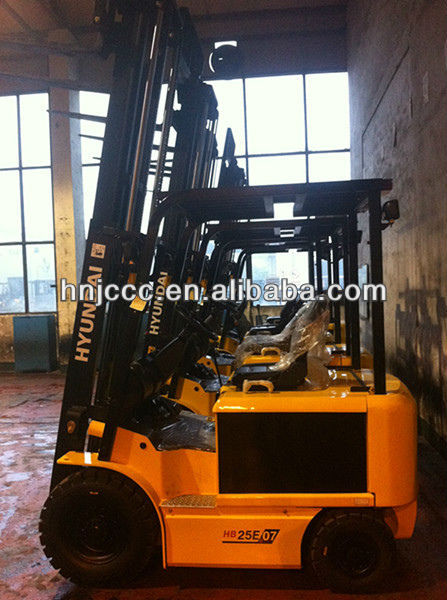

HB25E(07)electric forklift(mini forklift)

feature	model			HB25E(07)
	rated loading capacity		kg	2500
	load center		mm	500
	tyre	C= solid tyre, P= pneumatic		Pneumatic
dimension	2 grade mast	max. lifting height	mm	3000
	fork	H*W*L	mm	40*122*1070
	fork distance	min.*max.	mm	240*1100
	mast inclination	Forerake/Retroversion	deg	6°/12°
	enternal dimension	full length	mm	3400
		width	mm	1200
		mast min. height	mm	2060
		overhead guard height	mm	2220
	turn radius	min. outside	mm	2020
performance	travel speed	no load	km/h	12
		full load	mm/s	300
	max. gradeability	speed 1.6KM/H (full load)	%	15%
	self weight	No load	kg	4190
axle frame	tire	number		2/2
		front		7.00-12-12PR
		rear		18*7-8-14PR
	wheelbase	distance	mm	1420
	Wheel tread	front	mm	960
		back	mm	980
	Ground clearance	the lowest point	mm	120
	controller type	traction		SEM
		hydraulic pressure		DC
	battery	Voltage/capacity	V/AH-5	48/715
		control mode		FET
	charger	charging source	VAC	3/380V
		way		microcomputer full-automatic
