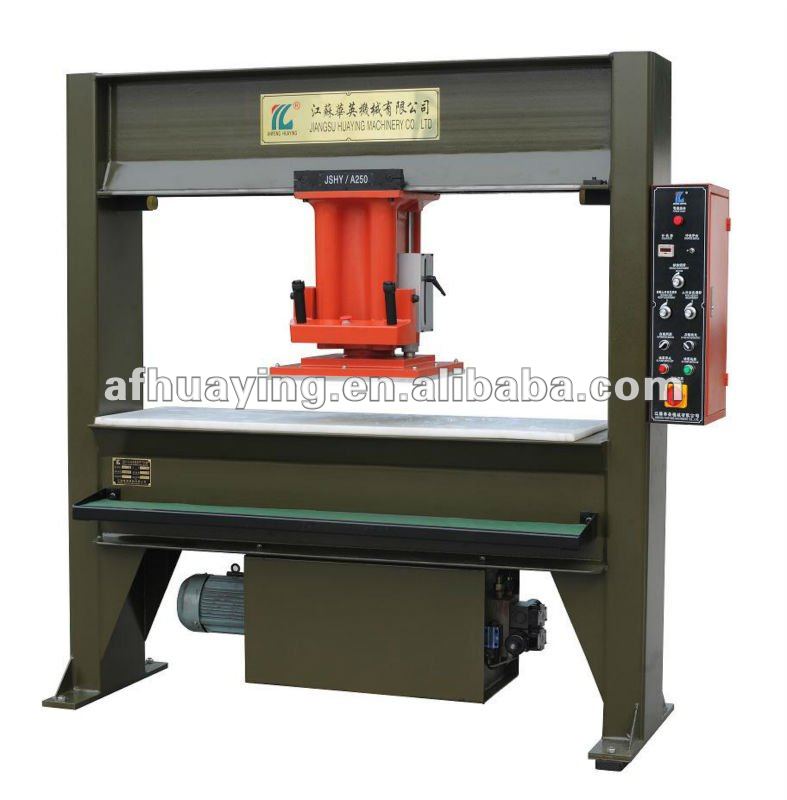

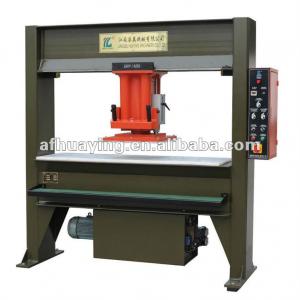

HYL4 Hydraulic travelling head moving die cutting machine(same as atom)

Hydraulic travelling head moving die cutting machine, Cut leather,rubber,plastic,paperboard,fabric,fibre, etc., ISO9001 - details see: https://www.machineto.com/hyl4-hydraulic-travelling-head-moving-die-cutting-machine-same-as-atom-10265401
Condition:NewAutomatic Grade:Semi-AutomaticPlace of Origin:Jiangsu China (Mainland)Brand Name:Anfeng Huaying
Model Number:HYL4Type:Cutting MachineVoltage:220v, 380v so onPower(W):2.2kw
Dimension(L*W*H):2200*700*2200mmWeight:1600kgCertification:ISO9001Warranty:one year
After-sales Service Provided:Engineers available to service machinery overseas
HYL4 Hydraulic travelling head moving die cutting machine(same as atom)
contact supplier for HYL4 Hydraulic travelling head moving die cutting machine(same as atom)


Detailed Product Description

cutting machine

The machine is mainly suitable for cutting one layer or layers of leather, rubber, plastic, paper-board, fabric, chemical fiber, non-woven and other materials with shaped blade.

HYL4-250HYL4-250AHYL4-350HYL4-350AHYL4-500HYL4-500A
Serviceable breadth1600 mm1800 mm1800 mm2000 mm1800 mm2000 mm
Travel head500x500 mm650x650 mm650x650 mm760 x 760 mm650x650 mm760 x 760 mm
Maximum cutting power25tons25tons35tons35tons50tons50tons
Stoke adjustable from-to5-150 mm5-150 mm5-150 mm5-150 mm5-150 mm5-150 mm
Pump motor2.2KW2.2KW3.0KW3.0KW4.0KW4.0KW
Travel head speed1.07 m/sec1.07 m/sec1.07 m/sec1.07 m/sec1.07 m/sec1.07 m/sec
Dimensions2200 x720x2200 mm2400x720x205 0mm2500x900x2100 mm2700x900x2200 mm2500x900x2200 mm2700x900x2200 mm
Net weight, with oil1600 Kg2100Kg2600kg3000 Kg3800kg5000kg

Feed Systems Available:Roll Feed Systems

Clamp Feed Systems

Factory direct sale; Guarantee Period one year

Note: we can produce different types, tons and cutting area of machine according to your demand.

Process Picture

*production:

(1)we produce hydraulic cuting machine with your own designed logo.

(2)supply ability:100 sets/month

(3)fast delivery

*price

(1)wholesale price

(2)good quality with best price

(3)terms of payment: T/T

*certificate:ISO9001-2008 Approved
*Market:East Asia,Eastsouth Asia.South America, Mexico,Middle east, East Europe and so on.
Artwork skills:The second generation hydraulicprinciple.

Price term: FOB Shanghai Payment term: T/T

Supply Ability:100 sets/month MOQ: 1 set

Sample delivery time: 2-3 days

Delivery Time: within 20 days after samples confirmed

Artwork: plane cutting machine, travel head cutting machine, four-column cutting machine and so on .

FAQ:

1.Q:Are you a factory or trading company?
A: Yes,we are a factory. you are most welcomed to visit us .

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Xinghua City, Jiangsu Province, China, about 4 hours from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:Have you ever attended any exhibitions ?
A:Sure.

Sample: 2012 Guangzhou exhubition

4.Q:What is the material of your products?

A:The material is mainly steel. We can also choose material as customers’ requirements.

5.What is the artwork of your products,can print our logo?

A: Yes,we can provide your logo.

6.Q:Can I get some samples?
A:We are honored to offer you samples in advance.

7.Q:How does your factory do regarding quality control?
A:Quality is priority. Huaying people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO authentication.

Welcome to contact us for more details ,most competitive price for you!

HYL4 Hydraulic travelling head moving die cutting machine(same as atom)
Packaging Detail:wooden case
Delivery Detail:within 30 days
