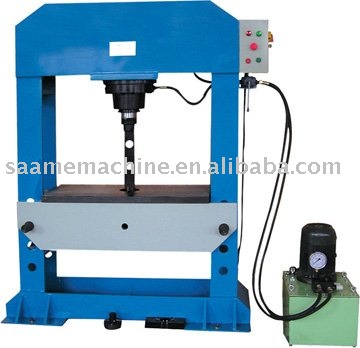

Hydraulic Press HP-100,HP-150,HP-200,HP-300,HP-400,HP-500
Hydraulic press from 30 tons to 500 tons - details see: https://www.machineto.com/hydraulic-press-hp-100-hp-150-hp-200-hp-300-hp-400-hp-500-10132931
| Condition:New | CNC or Not:Normal | Power Source:Hydraulic | Place of Origin:Shaanxi China (Mainland) |
| Brand Name:SAAME | Model Number:HP-100,HP-150,HP-200,HP-300,HP-400,HP-500 |
HP series Hydraulic Press specification
| Model | Capacity(KN) | Pressure(MPA) | Travel(mm) | Table size(mm) | POWER(Kw) | Dimension(mm) | work table(mm) | Weight(kg) |
| HP-100 | 1000 | 30 | 250+405 | 460X980 | 3 | 184X75X225 | 73X63X96 | 1100/1200 |
| HP-150 | 1500 | 42 | 250+405 | 460X980 | 4 | 184X75X225 | 73X63X96 | 1500/1600 |
| HP-200 | 2000 | 40 | 300+405 | 500X1000 | 5.5 | 194X95X235 | 90X80X106 | 2100/2300 |
| HP-300 | 3000 | 42 | 300+405 | 700X1200 | 11 | 210X95X270 | 110X120X135 | 4200/4500 |
| HP-400 | 4000 | 42 | 300+405 | 900X1200 | 11 | 230X100X290 | 110X120X135 | 5500/5850 |
| HP-500 | 5000 | 45 | 300+405 | 900X1200 | 15 | 230X100X290 | 110X120X135 | 6500/6900 |
| Packaging Detail:Wooden case |
| Delivery Detail:30 days |
