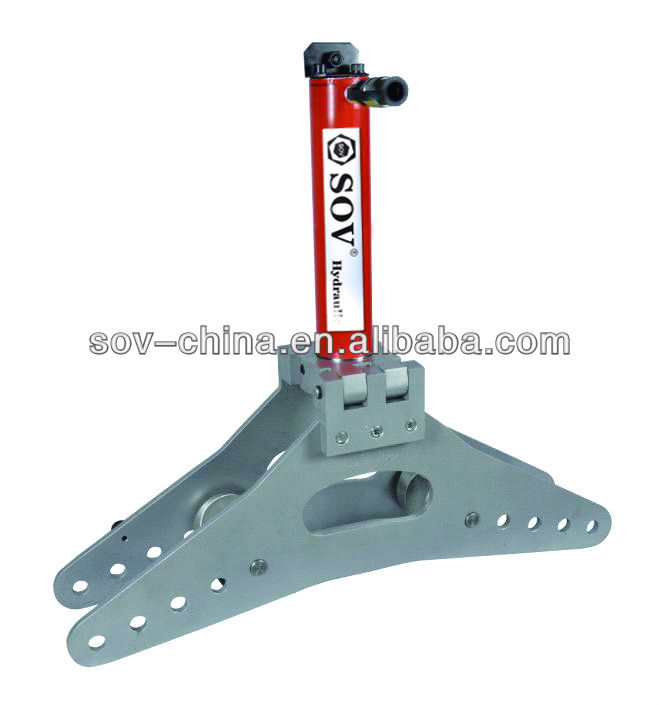

Hydraulic pipe bending machine price

Hydraulic pipe bending pirce, Capacity: 10 ton - 30 Ton, 6 pcs Dies free offer, Pipe O.D: 1/4 to 6 inches - details see: https://www.machineto.com/hydraulic-pipe-bending-machine-price-10123314

Condition:New	Place of Origin:Shanghai China (Mainland)	Brand Name:SOV	Model Number:SV16PZ series
Machine Type:Pipe and Tube Bending Machine	Raw Material:Steel Bar	Material / Metal Processed:Carbon Steel	Power:Hydraulic
Automation:Electric	Extra Services:End Forming	Certification:CE	After-sales Service Provided:Overseas third-party support available
Warranty:One Year Quality Warranty guarantee	Capacity:10, 20, 30 ton	Operation:Manual	Height:Adjustable bracket
Maximum Bending Degree:90 degree	Color:customize

Features

Bend type:stainless steel,angle steel,steel bar,flat steel,channel steel,steel tubes&pipes

Operating: Electric pump drive hydraulic pump

One Year Quality Warranty guarantee

1.Perfectly complete pre-bending,rolled-up,roll calibrate.

2.Working principle: two down rollers as main driving roller,or all three rollers as main driving roller,with upper roller fixed and two down rollers do up-and-town movement around one fixed center

3.Well hydraulic control,displacement liquid-crystal display with accuracy+_0.1mm

4.The two touch steel stick can permit the good finishing quality of asymmetric plate section bending

5.Advanced and compact structure with full function.

6.The machine head can turn over horizontally or vertically.

Our hydraulic pipe bending machine is the perfect machine for those hobbyists that need to bend tube on a budget. It is made from a sturdy cast iron frame and can be bench or pedestal mounted with the included pedestal. The hydraulic pipe bending machine was designed to bend the most common sizes of tubing on safe centerline radii to ensure great looking bends

Also included is a very nice carrying case, which allows the bender to be stored when not in use. Contact a Baileigh Industrial representative for more information on the RDB-25 manual tube bender.

Model	Capacity(ton)	Pipe O.D (inch)	No. Of DIES free offered	Cylinder stroke (mm)	Hydraulic oil tank capacity (ml)	Power origin	Pressure (bar)	Weight(kg)
SV16PZ10	10	1/2-2	6	250	375	Hydraulic pump	700	18
SV16PZ20	20	1/2-3	8	270	750	Hydraulic pump	700	40
SV16PZ30	30	1/2-6	10	300	980	Hydraulic pump	700	86

DIE Models and Parameters

Power Supple

Electric Hydraulic Pump

Models&Parameters

Model	Max pressure	Oil capacity per stroke(L/min)		Volt	motor power(Kw)	Steering Valve	Usable oil	weight(Kg)
	(Bar)	Low pressure	High	(V)		type	(L)
		Low pressure	pressure
SV14BS031	700	2.2	0.3	220	0.35	Manual	2.5	10
SV14BS032		2.2	0.3	220	0.35	Manual	2.5	10
SV14BS061		4	0.6	220/380	1.1	Manual	6.5	22
SV14BD061		4	0.6	220/380	1.1	Electric	6.5	22
SV14BS062		4	0.6	220/380	1.1	Electric	6.5	22
SV14BD062		4	0.6	220/380	1.1	Electric	6.5	22

For more about our electric hydraulic pump:

http://sov-china.en.alibaba.com/product/798227129-214784426/SV14_series_Hydraulic_Torque_Pumps_Price_low.html

About SOV Hydraulic Technology Co., Ltd.

Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
