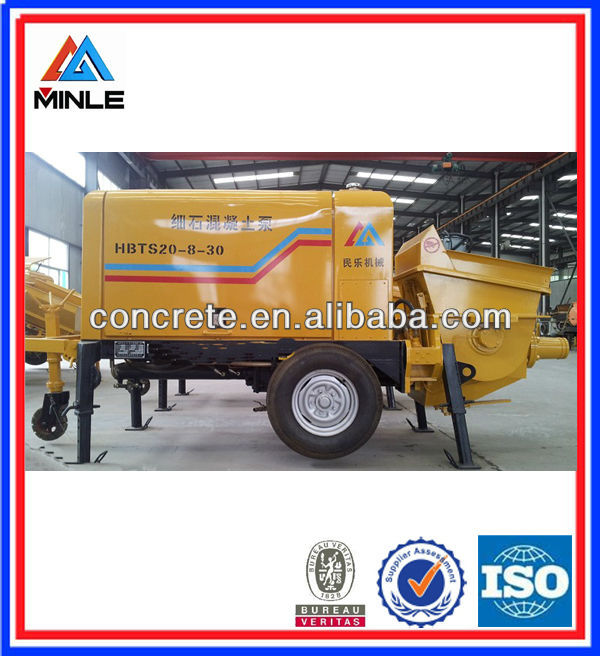

Hydraulic new concrete pump for construction machinery

1.double pump:energy saving,high efficience, 2.Easy operation and maintenance, 3.Italy hydraulic hose, 4.Kawasaki oil pump - details see: https://www.machineto.com/hydraulic-new-concrete-pump-for-construction-machinery-10093152

Condition:New	Power Type:Electric	Place of Origin:Shandong China (Mainland)	Brand Name:Minle
Model Number:HBTS25-8-37	Power(W):30KW	Weight:2200KG	Dimension(LWH):4400X1450X1700mm
Certification:BV, ISO9001	Warranty:6month	After-sales Service Provided:Engineers available to service machinery overseas	Max theoretial concrete output:25mÂ³/h
Max concrete delivery pressure:8Mpa	Distribution valve:S valve	Max theoretical converying distance:400/130m	Max aggregate size:30mm
concrete slump range:120-230mm	Rated speed:1480r/min	Cleaning mode:high pressure washing

Using situation of concrete pump

It has been wildly used in many projects such as high buildings, municipal construction, tunnel, culverts, electricity,

power, traffic and so on.

Electronic control system

Fully enclosed electronic control box could protect the control system working under harsh conditions.

The elements of electrical controlling system is adopted Japan (MITSUBISHI) and Germany's original parts.

The excellent assembly quality fully guaranteed the function of electrical controlling system.

Programmable Logic Controller (PLC) electronic control system

Wired remote control, operating excellent

Main Technical Parameters:

Item	HBTS-15	HBTS20-8-30	HBTS25-8-37	HBTS30-10-45
Max. Theoretical Concrete Output (m³/h)	15	20	25	30
Max. Concrete Pumping Pressure(Mpa)	6	8	8	10
Distribution valve	S Valve	S Valve	S Valve	S Valve
Conveying tube inner Dim(mm)	Φ100A/70A	Φ100A/70A	Φ100A/70A	Φ100A/800A
Max. Theoretical Conveying Distance (Horizontal Distance/Perpendicular Height)(m)	300/80	400/130	400/130	500/150
Concrete Cylinder Diameter(mm)	Φ140×700	Φ140×750	Φ140×750	Φ160×1000
Hopper Capacity/ Filling Height (m³/mm )	0.3/1100	0.3/1100	0.3/1100	0.4/1100
Maximum aggregate size(mm)	30	30	30	30
Concrete slump range(mm)	120-230	120-230	120-230	120-230
Main motor powder(kw)	22	30	37	45
Rated speed(r/min)	1480	1480	1480	1480
Voltage(v)	380/50	380/50	380/50	380/50
Fuel tank capacity(l)	150	150	150	200
Cleaning mode	High pressure washing	High pressure washing	High pressure washing	High pressure washing
Dimension(mm)	3900x1350x1450	4100x1400x1450	4400x1450x1700	4500x1500x1800
Total Weight (including oil)(kg)	1950kg	2200	2200	3000
