hydraulic hot press for wooden door

hydraulic hot press for wooden door, suitable for pressing & laminating on, particle board, MDF, HDF,, plywood, solid wood etc. - details see: https://www.machineto.com/hydraulic-hot-press-for-wooden-door-10343951
Type:Hot Press MachinePlace of Origin:Gujarat IndiaBrand Name:JAIModel Number:J-100T1
hydraulic hot press for wooden door
contact supplier for hydraulic hot press for wooden door


hydraulic hot press for wooden door

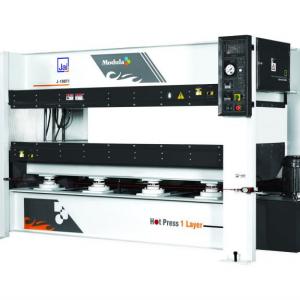

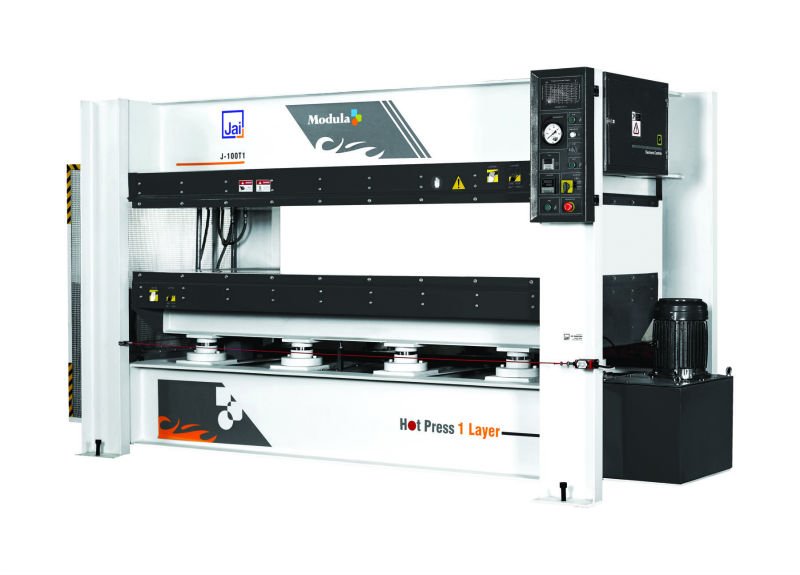

HOT PRESSJ - 100T1
Specification : -
Maximum load/pressure rating (ton/kg/cm2)100 / 3.1
Platen size (mm)2500 x 1300 x 42
Number of layers (nos.)one
Qty. of pressing board (nos.)2
Opening between layers (mm)300
Number of hydraulic cylinder (nos.)8
Size of hydraulic cyliner (mm)100Ø
Heating power (kw)18 - 36
Hydralic pump power (kw)5.5
Hot oil delivery pump power (kw)2.2
Machine dimension (L x B x H) (mm)3600 x 1650 x 2000
Approx. net weight (kg.)6500

Application :
• Suitable for pressing & laminating on
fibre boards, decorative papers,
plywood & other lamination sheets.
• Can be used for Particle / MDF / HDF board.

Salient Features :
> Rigid construction to take care of thermal distortion.
> Platens designed to have uniform temperature distribution system throughout its surface.
> Heavy duty hydraulic cylinders.
> Manual & semi-automatic controls.
> Parallel & smooth operation of platens.
> Pressure controller with indicator.
> Free floating cylinders to take care of alignment.
> Graphical & tabular pressure charts.
> With emergency stop controls.

  • Jai industries was established in the year 1965, when it made a modest beginning by manufacturing a few m / cs for wood working industries.
  • Today it manufactures a wide range of wood working machines for various applications, which due to their quality, reliability & competitive price have been the most preferred choice in the Wood Working Industry.
  • Well-Equipped manufacturing facility
  • We have manufacturing facilities which span across an area of 10, 000 sq. m. & has a well-equipped assembly and testing facilities.
  • From foundry to tool room, machining to assembly, testing, paint shop to stores and backed up by creative design & engineering unit and effective logistics cell.
  • Qualified, trained and skilled workforce of over 500 people
  • Our people are our biggest asset & strength and utmost care is taken for human resource development. As a result, most of our technical and commercial staff has been with us for more than two decades.
  • Highest installation figure & efficient productivity to meet delivery schedules
  • JAI has more than 2, 00, 000 machines installed at various customers end, which have been working satisfactorily to their expectation. The facilities are geared up to cater to tight delivery schedules of the demanding customers.
  • Quality assurances
  • For Jai, technology is of paramount importance and quality is a logical sequel. Stringent quality measures are in place from design to manufacturing and testing to dispatch.
  • We are committed to provide products & services to our customers that meet their requirements and exceed their expectations.
  • A well defined quality assurance plan backed by systems ensures that, each and every machine being shipped, perform in consonance with its promises.
  • Jai, making its presence felt in the global market
  • Jai is now making its presence felt in the global market & has already started exporting its products to Middle East, many African and South American countries, previous USSR countries and whole of Indian sub-continent.
  • Our wood working m / cs have been very well accepted in the overseas market for the quality of its products & services.

Cutting tools for spindle moulder also available:

Complete range of woodworking machinery:

For Solid wood

Surface palner,Thickness planer

circular saw,Spindle moulder

Double side thickness palner,Three side thickness planer

copy lathe,Band saws,Radial saws

Chain mortisers,Tenoning machine, Blade sharpening machine

For Panel boards

Beam saw,Panel saw

Edge bander,Edge trimmers

Post forming,Multi borer

CNC routers,Vacuum press

Roller press,Hot press,Cold press

Four side moulder, Dust collectors

hydraulic hot press for wooden door
Packaging Detail:Plastic wrapping
Delivery Detail:Ex-stock or 4 to 5 weeks
