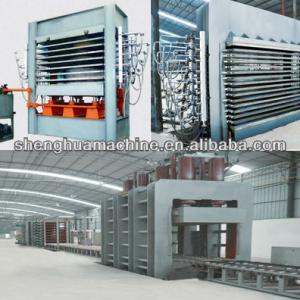

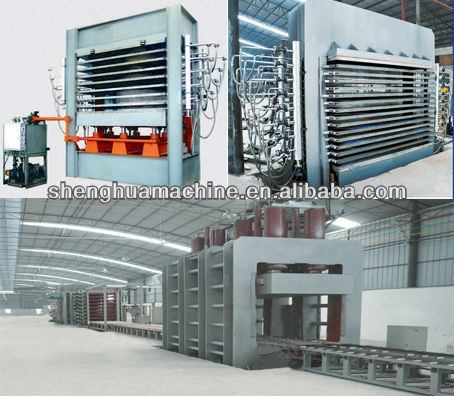

hydraulic hot press for plywood

1.the machine has got CE certificate., 2.composite frame, 3.convenient to transport, 4.easy to install - details see: https://www.machineto.com/hydraulic-hot-press-for-plywood-10346061
Condition:NewType:Hot PressApplication:plywood hot pressPressure:31.5mP
Place of Origin:Shandong China (Mainland)Brand Name:ShenghuaModel Number:SH-4*8-400T-HotpressVoltage:380V
Power(W):18.5KwDimension(L*W*H):3550*1370*4050 mmWeight:30TonsCertification:CE
Warranty:1 yearAfter-sales Service Provided:Overseas third-party support available
hydraulic hot press for plywood
contact supplier for hydraulic hot press for plywood


Type:400T 15 layers hotpress
Major ComponentParameters
Quantity and Diameter of Cylinder2 units Φ320mm
Stroke of Cylinder1050mm
No-load closing timeAbout 27s
Hydraulic systemMicrocomputer Manually/Automatic controlled
Hydraulic system compression resistance25MPa
Main motor11KW
Pressurized motor5.5kw
Main PumpShanghai Aviation 250pump(by Japan-Techical)
Pressurized pump10ml/rev plunger pump
Integral quality drilling board2700x1370x42mm
Separation between layers70mm
Width of plate main frame35, 22, 12 mm
Width of Upper/Bottom and Movable Crossbeam1000, 900, 400mm
Movable crossbeam2700x1370x400mm
Dimensions of Main Frame3560x1370x4380mm


hydraulic hot press for plywood
Packaging Detail:Standard Package
Delivery Detail:25 days
