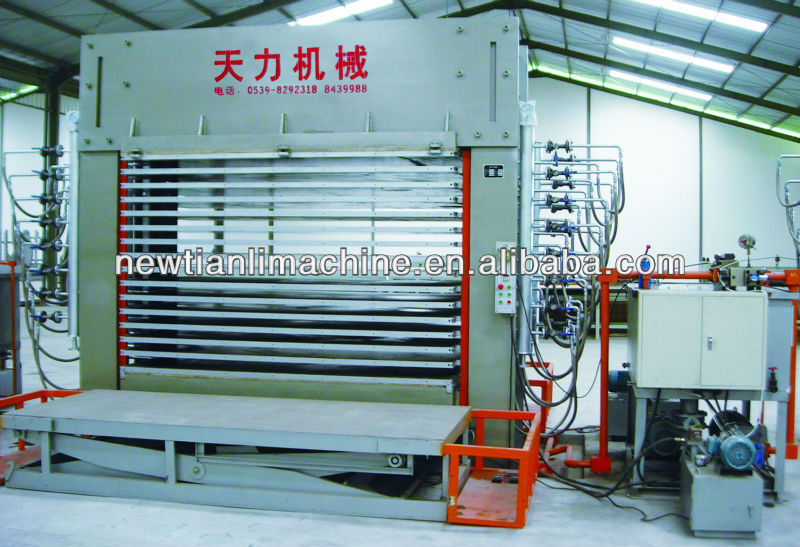

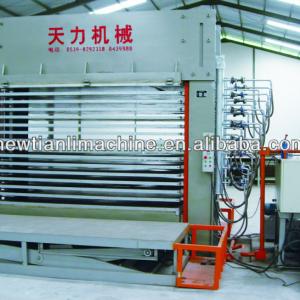

Hydraulic Hot Press for Plywood
TIANLI BRAND,THE BEST PLYWOOD MACHINERY/PB LINE MANUFACTURER. - details see: https://www.machineto.com/hydraulic-hot-press-for-plywood-10344481
| Condition:New | Type:Hot Press Machine | Place of Origin:Shandong China (Mainland) | Brand Name:New Tianli |
| Weight:4000 kgs | Certification:ISO9001 | Warranty:12 months | After-sales Service Provided:Engineers available to service machinery overseas |
| Model | BY214×8/5-15IIZ |
| Nominal gross pressure | 5000 KN |
| Direction of feeding plate | Horizontal |
| Layer Counting | 15 layers |
| Distance between hot platens | 70 mm |
| Numbers of hot platens | 16pcs |
| Dimension of Hot Platens | 2700×1370×52 mm |
| Numbers of Cylinder | 2pcs |
| Diameter of Cylinder | Φ360 mm |
| Stroke of Cylinder | 1050 mm |
| Pressurization | ≤25 Mpa |
| Empty Closing Time | 16S |
| Low Pressure Pump Flowing | 510L/min |
| Allowed Pressure | ≤2 |
| Power | 11 kw |
| High Pressure Pump Flowing | About 14L/min |
| Power | 7.5 kw |
| Pressure of Unit Plate Blank | 15Kgf/cm2 |
| Dimensions of The Board | 2560×128mm |
| Overall Dimensions | 4500×1370×3600 mm |
| Machine Weight | 40000Kgs |
| Control Method | Automatic Pump Station |
| Frame Pattern | Composite frame |
| Thickness of Upper And Lower Crossbeams | 1000,90mm |
| Packaging Detail:standard export packaging |
| Delivery Detail:30 Days upon deoosit |
