2013 best selling hydraulic hose crimping machine, 1.12months guarantee, 2.treated package, 3.free dies, 4.free sea freight - details see: https://www.machineto.com/hydraulic-hose-crimping-machine-10339572

China surplier 2013 hot selling hydraulic hose crimping machine up to 2 1/2"- 6 wire hose

1. Brief Introduction

Model QTD64

Hydraulichose crimping machine is mainly used for crimping the hose fittings onto the hydraulic rubber hose in the mechanical engineering. .

This machine features small and portable appearance, big force, low noise and easy to operate. in order to crimp differents style of fittings , we have the new design on the moulds to suitable for both straight fittings and elbows.amd flanges.and each model has the micrometer to make sure the Accuracy .

this type of hydraulic hose crimping machine especially suits the shipping industry shops, oil drilling , heavy industry, large -scale mine and so on.

the most important thing i should say , there are two way for this hydraulic hose crimping machine, it has foot control and hand controls.

if you have interest please flow me to study more about it !

Technology Parametric of QTD-64 hydraulic rubber hose crimping machine:

Crimping range	6~64mm/1/4"~2 1/2" (up to 6 wire)
The largest crimping pressure	520 tons
Rular precision	0.02mm
Rated pressure	31.5 Mpa
The amount of contraction and expansion	40mm
Motor power	5.5KW
Pump displacement	14.5L/min
Outer size	950*800*1400mm
Weight:	550KGS
Dies	12sets

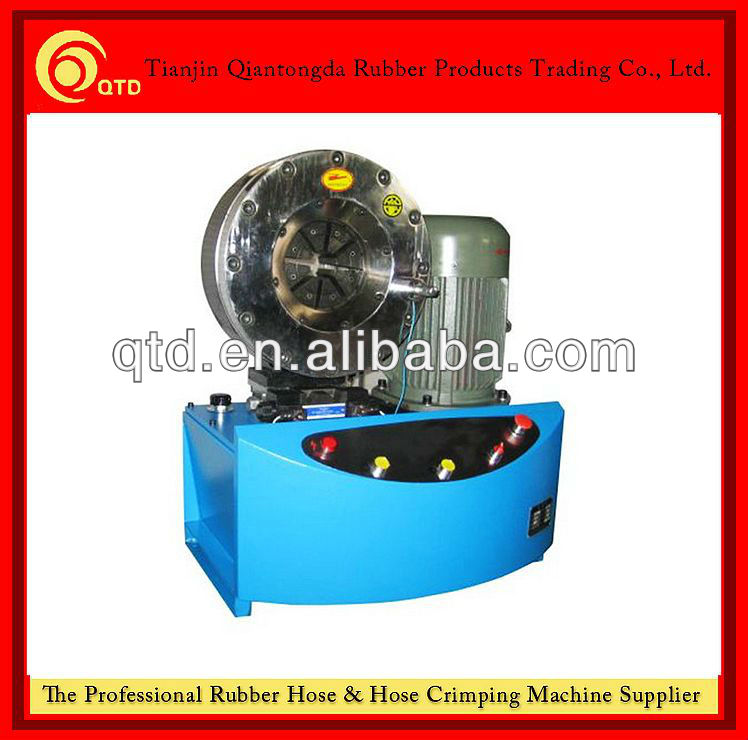

QTD-64 hydraulic rubber hose crimping machine

hydraulic hose crimping machine :

This is our new machine we designed, it crimp from 1/4"~2 1/2" up to 6 wire.see the photos as belows:

hydraulic rubber hose crimping machine Pictures for different sides QTD-64:

QTD-51 hydraulic hose crimping machine ,IT IS OUR BEST SELLING ITEM,CRIMP FROM 1/4"~2",SEE THE PHOTOS:

QTD-M75 AND QTD-M32 hydraulic rubber hose crimping machine ARE OUR MANUAL ITEMS, IT IS CHEAPER AND PORTABLE:

SEE IT'S PACKAGE of hydraulic rubber hose crimping machine, PACKED IN WOODEN CASE:

See the hydraulic rubber hose crimping machine dies :

Warranty of hydraulic hose crimping machine

The machine failures are warranted to repair in 3 months for the electric from the purchased date, and 1 year for the body of the machine.

all the accessories failures will be repaired (if necessary, replace) free charge during the warranty. In case of damage from improper use or accident damage, the repairs are not free.

Notices of hydraulic Hose Assembly Crimping Machine

1. When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.

2. Prevent tool and other foreign matter from entering the locking head.

3. After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.

4. When working, the hand should not stretch into the locking head.

5. The power supply must be switched off when maintenance is done.

Discount of hydraulic hose crimping machine

If you order 2 sets or more, the price will have a discount

If you order 5 sets or more, the price will have a big discount !

Welcome to your any enquiries.

Our certificate

Our medalConsumer trust units

1.We have won the best surplier of 2013

2.We are the consumer trust company

3.We have won best quality in China.

4.SGS certifications
