Hydraulic Cold Press Machine
1)worktable can be seperated into 2-4 sections, 2)max opening:1000mm - details see: https://www.machineto.com/hydraulic-cold-press-machine-10345916
| Condition:New | Type:Cold Press | Application:press | Pressure:25T |
| Place of Origin:Shandong China (Mainland) | Brand Name:HELPFUL | Model Number:HE501 | Voltage:380V |
| Power(W):5.5KW | Certification:ISO | Warranty:1 YEAR | After-sales Service Provided:Engineers available to service machinery overseas |

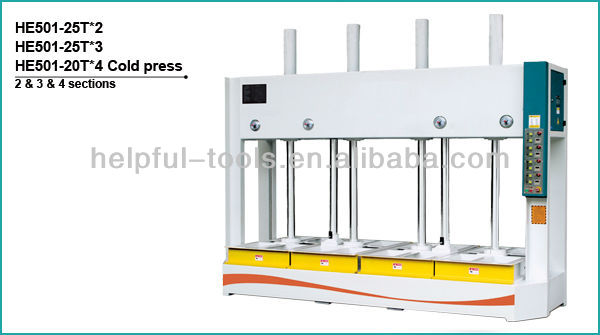

| Model | HE501-25T*2 | HE501-25T*3 | HE501-20T*4 |
| Press platen size | 1300*2500/2mm | 1300*3000/3mm | 1300*3000/4mm |
| Max. total thrust | 25T*2(1.6kg/cm2) | 25T*3(2kg/cm2) | 20T*4(2.1kg/cm2) |
| Pressure of hydraulic system | 210kg/cm2 | 210kg/cm2 | 170kg/cm2 |
| Max. platen opening | 1000mm | 1000mm | 1000mm |
| Oil cylinder | Ø125mm*2 | Ø125mm*3 | Ø125mm*4 |
| Hydraulic motor power | 2.2kw | 5.5kw | 5.5kw |
| Outline size | 3110*1250*3000mm | 3550*1250*3000mm | 3550*1250*3000mm |
| Net weight | 2650kgs | 3800kgs | 4200kgs |
| Packaging Detail:Export standard packing |
| Delivery Detail:20 DAYS |
