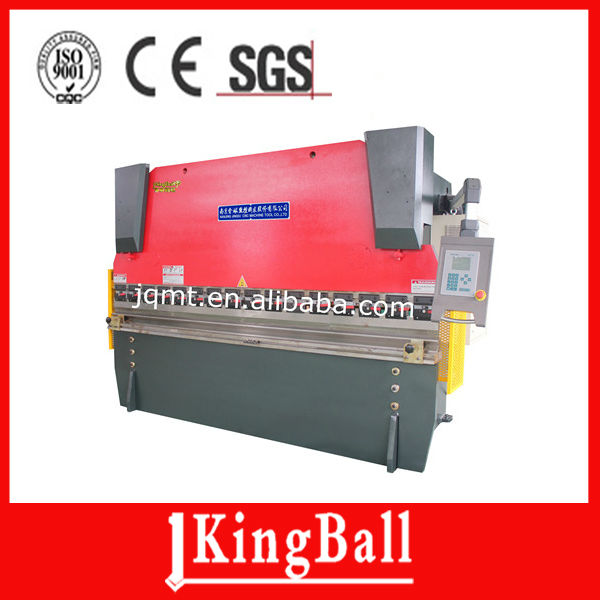

Hydraulic CNC plate Press brake

Hydraulic CNC plate Press brake, Atos valve, CE Certificate, Ball screw ,linear guide ,ABB motor - details see: https://www.machineto.com/hydraulic-cnc-plate-press-brake-10123846

Condition:New	Place of Origin:JIA,Jiangsu, China China (Mainland)	Brand Name:King Ball	Model Number:WC67K,WC67K-63/2500 (biaxial / uniaxial)
Machine Type:Beading Machine,cnc machine	Raw Material:Sheet / Plate Rolling	Material / Metal Processed:Stainless Steel	Power:Cnc,hydraulic
Automation:Automatic	Extra Services:Machining	Certification:ISO 9001:2000	After-sales Service Provided:Engineers available to service machinery overseas
color:all color	certificaton:CE	material:iron and metal sheet

1.All steel welded structure,vibrating treatment of ageing for removal of internal stress with high strength and good rigidity. 2.Torsion shaft forced synchronization of mechanical limit stopper balance with high precision. 3.Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance. 4.Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication. 5.Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism. 6.Multi machine combined operation is possible. 7.Safe guide is optional.(Protection barrier,photo-electric protection device) 8.Machine fitted with ATOS valves; NOK oil sealing, SCHNEIDER electricity main parts.

Hydraulic CNC plate Press brake

Hydraulic press brake (Series WC67Y)
Model	Pressure KN	Worktable length mm	Distance between columns mm	Depth of throat mm	Stroke mm	Max height between worktable and ram mm	Main motor KW	Weight KG	Dimension (LxWxH) mm
WC67Y-40/2500	400	2500	1925	220	80	300	4	3000	2650x1100x1950
WC67Y-50/2500	500	2500	2015	220	100	340	4	3750	2650x1250x2100
WC67Y-63/2500	630	2500	2015	250	100	340	5.5	4300	2650x1300x2200
WC67Y-80/2500	800	2500	2010	250	120	380	5.5	5200	2560x1350x2250
WC67Y-80/3200	800	3200	2510	250	120	380	5.5	6000	3260x1350x2280
WC67Y-100/2500	1000	2500	2050	320	150	420	7.5	6700	2550x1360x2270
WC67Y-100/3200	1000	3200	2550	320	150	420	7.5	7200	3260x1365x2520
WC67Y-100/4000	1000	4000	3050	320	150	420	7.5	8500	4060x1365x2720
WC67Y-125/3200	1250	3200	2550	320	150	420	7.5	7800	3260x1465x2600
WC67Y-125/4000	1250	4000	3050	320	150	420	7.5	9000	4060x1460x2800
WC67Y-160/3200	1600	3200	2590	320	200	475	11	10500	3260x1580x2775
WC67Y-160/4000	1600	4000	3040	320	200	475	11	12500	4060x1580x2925
WC67Y-160/6000	1600	6000	4800	320	200	480	11	19500	6060x1580x3480
WC67Y-200/3200	2000	3200	2580	320	200	475	18.5	13200	3260x1650x2800
WC67Y-250/4000	2500	4000	3130	400	250	530	18.5	19000	4060x1840x3150
WC67Y-250/5000	2500	5000	3930	400	250	530	18.5	24000	5060x1840x3450
WC67Y-300/3200	3000	3200	2530	400	250	580	18.5	18000	3300x2100x2980
WC67Y-300/4000	3000	4000	3200	400	250	580	18.5	22000	4060x2040x3330
WC67Y-400/4000	4000	4000	3180	400	320	630	30	30000	4060x2220x3630
WC67Y-400/6000	4000	6000	4700	400	320	630	30	45000	60602x2203x980
WC67Y-500/6000	5000	6000	4600	500	320	70	30	55000	6080x2760x4000
WC67Y-800/6000	8000	6000	4600	500	400	900	37	72000	6100x3250x4300

Hydraulic CNC plate Press brake

		WC67K-40/2000	WC67K-40/2500	WC67K-63/2500	WC67K-80/2500	WC67K-80/3200	WC67K-80/4000	WC67K-100/2500	WC67K-100/3200	WC67K-100/4000
Nominal force	kN	400	400	630	800	800	800	1000	1000	1000
Length of table	mm	2000	2500	2500	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	1650	2000	2000	1990	2600	3350	1650	2550	3350
Throat depth	mm	200	200	250	280	280	280	320	320	320
Ram stroke	mm	100	100	100	100	100	100	130	130	130
Stroke adjustment	mm	80	80	80	80	80	80	100	100	100
Max.opening height	mm	330	330	340	360	360	360	390	390	390
Stokes	Min-1	≥11	≥11	≥10	≥10	≥10	≥10	≥10	≥10	≥10
Main motor capacity	kW	4	4	5.5	7.5	7.5	7.5	7.5	7.5	7.5
Net weight	kg	3000	3600	4600	5300	6400	8300	7300	8200	9400
Outline dimensions(L×W×H	mm	2500 1900 2240	3000 1950 2240	3100 1900 2380	3150 1950 2350	3820 1950 2350	4650 1950 2350	3200 1960 2450	3790 1980 2450	4600 1980 2450
