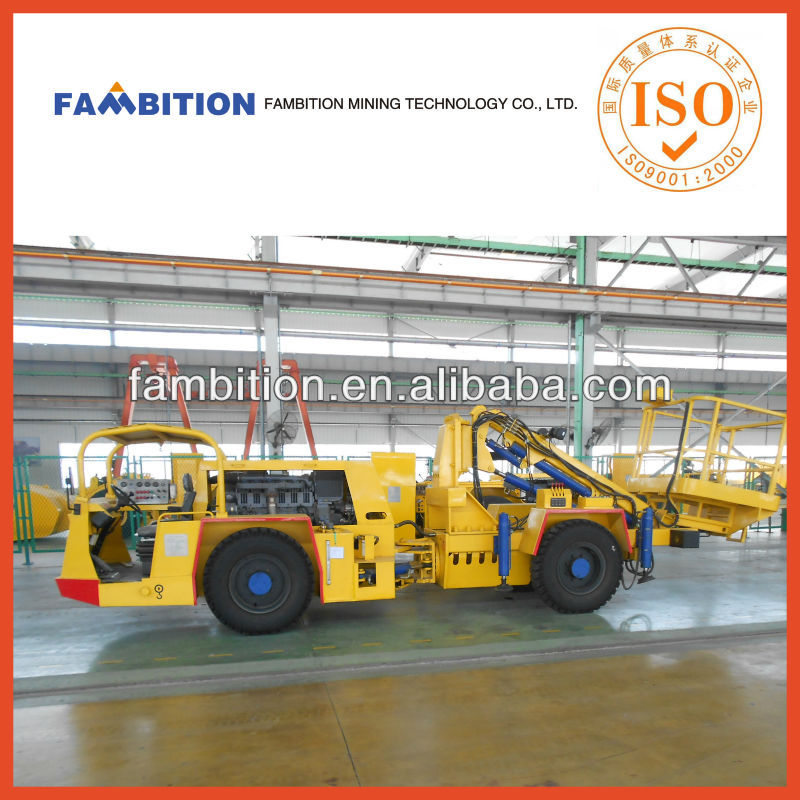

hydraulic chinese utility vehicle Extension Boom Lift

Underground Utility Vehicle, 1. multi-functional utility vehicle, 2. general chassis, 3. low maintenance cost, long life - details see: https://www.machineto.com/hydraulic-chinese-utility-vehicle-extension-boom-lift-10319246
Place of Origin:Shandong China (Mainland)Brand Name:FAMBITIONModel Number:FAMS-5Condition:New
Function:Maintenance vehicleEngine:Deutz / F6L912W / 65KW/ 2300 rpmDrivetrain:DANA / 1201FT20321Axle:DANA / 112
Brake:Posi-stop
hydraulic chinese utility vehicle Extension Boom Lift
contact supplier for hydraulic chinese utility vehicle Extension Boom Lift


Fams – 5 Underground Utility Vehicle

FAMS - 5 Scissor
EngineDEUTZ/F6L912W/65Kw/2300rpm
Torque ConverterDANA/1201FT20321
AxleDANA/112
BrakePark brake / Spring brake hydraulic release
Hydraulic systemFront and rear is articulated/Steer
Main Dimension(L×W×H)6860×1800×2000(mm)
Wheelbase(mm)3420mm
Inner clearance circle3800mm
Outer clearance circle5780mm
Steering angle38o
Driving speed3 gears/0-22Km/h
Grandient25%
Operating weight7000Kgs
Work platform2540×1680×4500(mm)
Max weight lifting1000Kgs
Max lift height5m
Boom rotation angle38o

hydraulic chinese utility vehicle Extension Boom Lift
Packaging Detail:nude package
Delivery Detail:as per contract
