C4A-200T Hydraulic Car Mat Cutting Machine

Application

• Used for cutting seat cushion, car seat cover and othe car interiors, fabric, cardboard, rubber, sponge, bag, non woven, and other non-metallic materials in various industries;
• Extremely suitable for cutting multiple layers of material at one time;
• C4A Series cutting machines are models that equip Automatic Feeding Table on the basis of C4 Series cutting machines.

Key Features

• Machine body is made of high quality steel, very strong and durable;
• Benefiting from the integrated design of mechanics, electrics and hydraulics, it's very easy to operate, no complicated operating training is required (anyway, the operators shall know operating rules and process, and illegal operating is strictly prohibited);
• Hydraulic drive mode, all hydraulic system components are of superb quality;
• Precise 4 column machine structure, anddouble connecting barmake the machine run extremely balanced and stable, keep the same cutting depth in the whole cutting area;
• Automatic lubrication system, the machine is lubricated automatically during operation. This design can reduce abrasion;
• Double oil cylinders, andautomatic oilingduring operation;
• Automatic Feeding Tableis equipped, the materials can be fed for cutting automatically, so it will greatly reduce the workload, and inprove working efficiency;
• Two-handed operation design and emergency stop device can ensure safe operation;
• Easy and convenient to install cutting mold, so is the machine's setting and adjusting;
• Low maintenance cost;
• Low running noise;
• Advanced technology, qualified parts and superb workmanship will ensure the machine's running stability and service life.

Options

• Servo motor
• PLC (Programmable Logic Controller) system, including touch screen
• Fine motion unit on cutting bed
• Pneumatic clamp unit for die cutter / knife mold
• Platen Size / Bed Size
• Machine color

Main Technical Data

• C4A-200T Hydraulic Car Mat Cutting Machine

Model:	C4A-200T
Cutting Force:	200 Ton
Platen Size:	1600 x 1400 mm
Bed Size:	1600 x 1400 mm
Cutting Stroke:	0-145 mm
Distance between Platen to Bed:	45-190 mm
Motor:	15.0 KW / 6 Pole
Hydraulic Oil:	300 Liters of 46 anti-wear hydraulic oil
Net Weight:	9000 KGS
Dimension:	2500 x 1500 x 1500 mm
Auto Feeding Table
Frequency Converter:	MITSUBISHI
Auto Feeding Motor:	1.5 KW
Auto Feeding Table Actual Dimension:	1600 x 1250 mm
Auto Feeding Table External Dimension:	1700 x 1400 mm
Weight:	260 KGS

Machine Photos

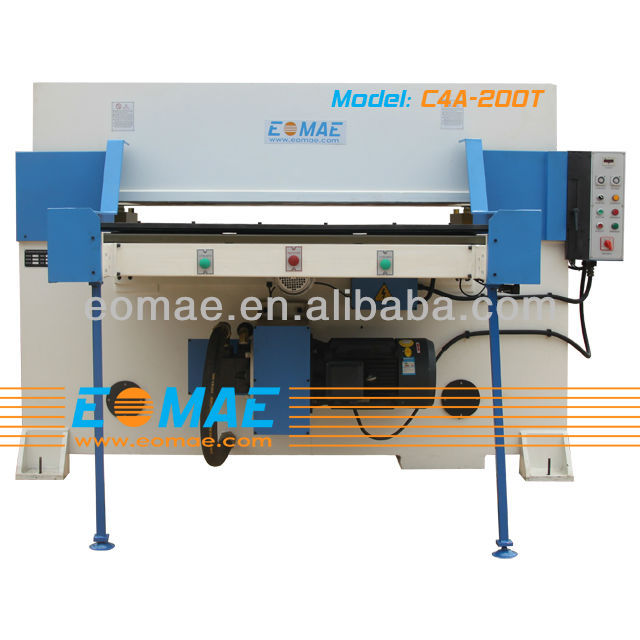

• C4A-200T Hydraulic Car Mat Cutting Machine

Mold Samples
