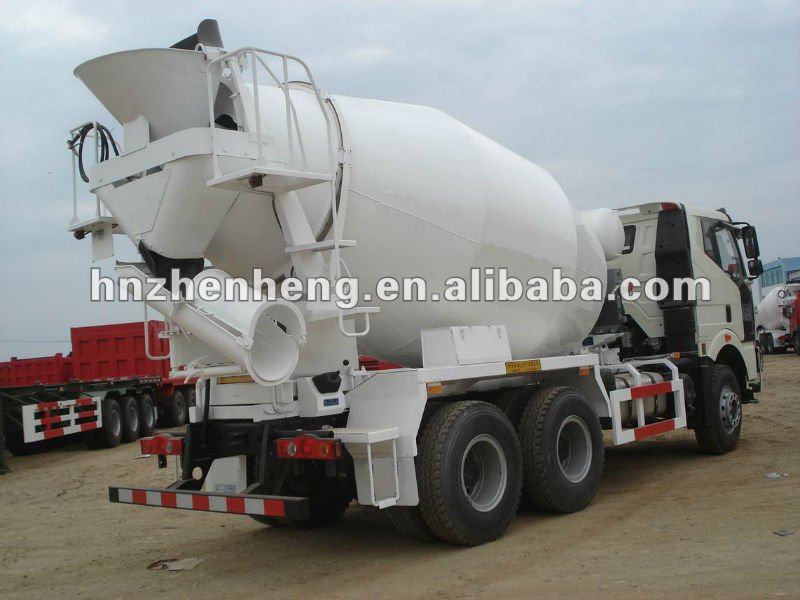

HYC Concrete Mixer Transport Truck

HYC concrete mixer drum truck:, 1.professional manufacturer., 2.ISO9001 certificated., 3.OEM order accepted., 4............. - details see: https://www.machineto.com/hyc-concrete-mixer-transport-truck-10094525

Condition:New

Place of Origin:Henan China (Mainland)

Brand Name:Zhenheng

Model Number:HYC.9m3 concrete mixer transport truck

contact supplier for HYC Concrete Mixer Transport Truck

HYC concrete mixer drum truck chassis can be choos as your demand.

Dimensions:
Overall size(length × width × height)		9780mm×2500mm×3990mm
Wheel base		3800mm+1350mm
Wheel track(Front/Rear)		2027mm/1820mm
Ground clearance		298mm
Weight:
N.V.W		14000kg
Payloading capacity		10900kg
G.V.W		24900kg
Axle loading capacity(Front/Rear)		7000/2x9000kg
Performance:
Max. traveling speed		75km/h
Min. turning diameter		21.2m
Grade ability		48%
Approach angle		24°
Departure angle		30°
Fuel consumption		33L/100km
Engine
Model		L340 20
Type		Direct injection, turbocharged, water cooled
Rated power		250kW
Transmission:
Type		9JS150T-B synchromesh, forward 9, reverse 1
Ratio		12.11; 8.08; 5.93; 4.42; 3.36; 2.41; 1.76; 1.32; 1.00 ; 12.66R
Steering:
Type		ZF8098, hydraulic steering with power assistance
Ratio		22.2~26.2
Front axle
D310, rigid stub axle with double T-cross section
Rear axle
HC16
Ratio		5.73
Clutch
Single-plate dry coil-spring clutch, diameter 420, hydraulically operated with air assistance
Brakes
Service brake-Dual circuit compressed air brake
Parking brake-Spring energy operating on rear wheels
Auxiliary brake-Engine exhaust brake
Wheels rim& Tyres
Rims		8.50R20
Tyres		11.00-20
Mixer Drum
Effective capacity		8m 3
Leaning angle		12 o
Rotation speed		0~14rpm
Feeding speed		≥3.5m 3 /min
Discharging speed		≥3m 3 /min
	Landslide degree	50~210mm
	Surplus rate	≤1%
	Water tank	400L
