HY ball mill for sale

ball mill for sale, 1.For wet or dry, 2.ISO9001:2000&CE, 3.Save more 35% energy, 4.Wear resistant structure - details see: https://www.machineto.com/hy-ball-mill-for-sale-10314229

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18.5-300
Capacity(t/h):0.65-29	Place of Origin:Shanghai China (Mainland)	Brand Name:HY	Model Number:HY
Dimension(LWH):Have several type	Weight:3.6-56	Certification:ISO9001:2000&CE	Warranty:One year
After-sales Service Provided:Engineers available to service machinery overseas	Certificate:ISO9001:2000&CE	Exported:More than 50 countries	Guarantee:One year
Experienced:More than 20 years	Spare parts:Supply	After-sales service:For whole using life	Grinding Style:Wet or Dry
Maintenance:Easy and low cost	Color:As requirements	Installation:Under our engineer guide or provide technology support

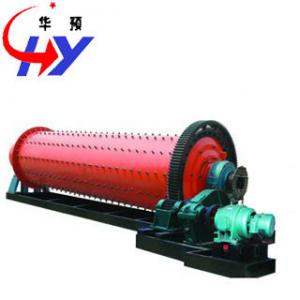

This ball mill is made up of feeding part, discharging part, gyre part, transmission part, and so on.

The hollw axis adopts the cast steel and the lining can be replaced, the rotary big gear is processed from cast rolling gear, the barrel body id wearable well and bears wearable scaleboard. This machine runs steadily and works reliably.

Brief introduction

Ball mill is an efficient for grinding many materials into fine power. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding the dry process and dthe wet process. It can be individual into tabular type and flowing type according to different forms of discharging material.

Main Technical Parameters

Model	Rev.of Barrel (rpm)	Ball Lead(mm)	Feed Size (mm)	Finished Size(mm)	Capacity(t/h)	Power(kw)	Weight (t)
Φ900*1800	38	1.5	≤20	0.075-0.89	0.65	18.5	3.6
Φ900*3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
Φ1200*2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
Φ1200*3000	32	5	≤25	0.074-0.4	1.6-5	45	12.8
Φ1200*4500	32	7	≤25	0.074-0.4	1.6-5.8	55	13.8
Φ1500*3000	27	8	≤25	0.074-0.4	2-5	90	17
Φ1500*4500	27	14	≤25	0.074-0.4	3-6	110	21
Φ1500*5700	27	15	≤25	0.074-0.4	3.5-6	132	24.7
Φ1830*3000	24	11	≤25	0.074-0.4	4-10	180	28
Φ1830*6400	24	23	≤25	0.074-0.4	6.5-15	210	34
Φ1830*7000	24	25	≤25	0.074-0.4	7.5-17	245	36
Φ2200*5500	21	30	≤25	0.074-0.4	10-22	370	48.5
Φ2200*6500	21	30	≤25	0.074-0.4	14-26	380	52.8
Φ2200*7500	21	33	≤25	0.074-0.4	16-29	380	56

NOTE:1)Accept consultation from customers and Provide design proposal of factory to customers.
2)Send our engineers to insall and fix equipments for customers and train your staff .
3)One year guarantee and service for whole using life

Also,our company produces other mining machines and construction machines.Such as:jaw crusher, impact crusher,hammer crusher, cone crusher and grinders, mills, sand machines,ect. welcome to enquiry!
