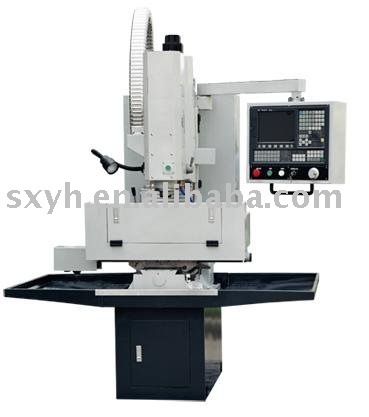

HXK7124 CNC Milling Machines
1.CE,standard, 2.No.1 quality in the market, 3.High quality to price ratio, 4.spare parts support - details see: https://www.machineto.com/hxk7124-cnc-milling-machines-10130820
Condition:New | Place of Origin:Shaanxi China (Mainland) | Brand Name:YuanHang | Model Number:HXK7124 |
Type:Vertical | CNC or Not:CNC | Processing:Milling Machine | Usage:General |
Controlling Mode:CNC | Precision:High Precision | Processing Types:Metal | Automatic Grade:Automatic |
Workpiece and Weight:Instrument Machine Tool | | | |
ITEM | HXK7124 | HXK7124H |
| | |
Size of worktable(length×width) | 800mm×240mm | 800mm×240mm |
T slot (width x qty x spaces) | 16mm×3×60mm | 16mm×3×60mm |
Max loading weight on worktable | 60Kg | 60Kg |
X-Axis travel | 430mm | 430mm |
Y-Axis travel | 290mm | 290mm |
Z-Axis travel | 400mm | 400mm |
Distance between spindle nose and table | 50-450mm | 50-550mm |
Distance between spindle center and column | 297mm | 297mm |
Spindle taper | BT30 | BT30 |
Max. spindle speed | 4000r/min | 4000r/min |
Spindle motor power | 1.5Kw | 1.5Kw |
Feeding Motor power: X Axis | 1Kw | 1Kw |
Y Axis | 1Kw | 1Kw |
Z Axis | 1Kw | 1Kw |
Rapid feeding speed: X,Y,Z axis | 6m/min | 6m/min |
Feeding speed | 0-2000mm/min | 0-2000mm/min |
Min. set unit | 0.001mm | 0.001mm |
Max. size of tool | φ60×175mm | φ60×175mm |
Loosing and clamping way for tool | Clamp by disc spring | Clamp by disc spring |
Loose manually | Loose manually |
Clamp by disc spring. | Clamp by disc spring. |
Loose pneumatically | Loose pneumatically |
Max. loading weight of Tool | 3.5Kg | 3.5Kg |
N.W (include machine stand) | 900Kg | 920Kg |
Packing size( L X W X H) | 1220×1380×1650mm | 1220×1380×1650mm |
Loading amount | 4pcs/20container | 4pcs/20container |
Packaging Detail:Export standard seaworthy packing. |
Delivery Detail:15 days |
