Hot selling mine mill grinding media

mine mill grinding media, low consumption, simple structure,high capacity, well after-sales service, low operating cost - details see: https://www.machineto.com/hot-selling-mine-mill-grinding-media-10314003

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Capacity(t/h):15-16
Place of Origin:Henan China (Mainland)	Brand Name:HuaZhu	Model Number:2.2x11m	Dimension(LWH):As different model
Weight:109t	Certification:ISO&CE	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas
Speed (r/min):21	Effective volume (m3):36	Driven approach:center	Main reducer model:D110
Weight (t):109	Certificetion:ISO9001:2000 ISO9001:2008	Color:as your required	Service:OEM
Technology:CAD,CAPP	Life span:long

Price:Competitive

Description:

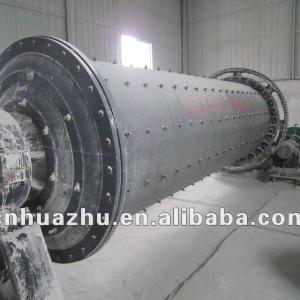

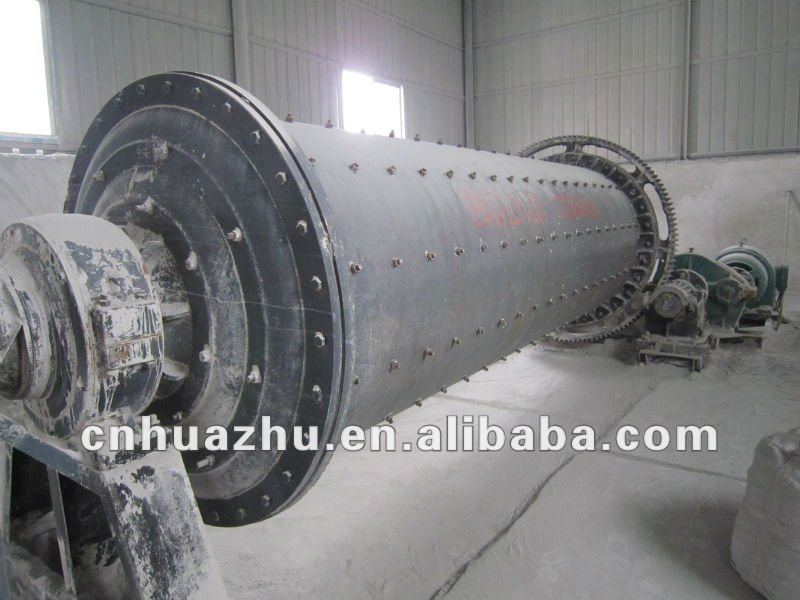

This is a key equipment to grind the crushed materials, and it is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,.And the cement mill can grind various ores and other materials with dry type and wet type.

features:

Thiscement millchanges in the structure of the traditional mill,so that the body,chassis integration can beinstalled on the basis of a plane,the main bearing a double row-aligning roller bearings,can reduce energy consumption 30%.liaoduo small increase,the crease in handing capacity of 15-20%.Besides,It have the stable structure,high capacity,easy maintenance,reliable performance,etc.And thecast steelgear rims ,main bearings(made in wafangdian)can be repaired for free in two years under right using(except fakeones)

Main technical parameters:

Specification		900×3000	1200×4500	1500×5700	1830×7000	2100×4500	2400×7000	2700×4500
Diameter of bucket(mm)		900	1200	1500	1830	2100	2400	2700
Length of bucket(mm)		3000	4500	5700	7000	4500	7000	4500
Speed of bucket(r/min)		40	31.3	29.2	27.2	24	23	21.7
Motor	Model	Y2-200L2-6	Y2-280S-6	Y2-315m-6	YR355M3-8	Yr355L1-8J	YR355L2-8J	JR157-8
	Power (kw)	22	45	90	185	210	245	320
Weight of ball (t)		2.3	5.2	14	21	22	39.5	38.7
Feeding size (mm)		≤25	≤20	≤25	≤25	≤25	≤25	≤25
Capacity (t/h)		2.5	1.2-7.5	2.0-1.5	21	8-33	12.7-40	16-45
Weight (kg )		7000	14830	25000	40800	54200	67500	87500
