Hot selling JZC 500 diesel engine concrete mixer,cement mixers, manufacturer

automatic concrete mixing machine, Easy Operation and high efficiency and quality, Low consumption - details see: https://www.machineto.com/hot-selling-jzc-500-diesel-engine-concrete-mixer-cement-mixers-manufacturer-10092491

Condition:New	Place of Origin:Henan China (Mainland)	Brand Name:T-H	Model Number:JZC 500
Motor Power:16HP	Mixing Power:14.7kw	Charging Capacity:750L	Reclaiming capacity:500L
Speed of Mixing Drum:13r.p.m	Water Supply Mode:pump	Working Cycle Period:60s	Discharge Way:hydraulic
Outline Dimension:345023403200mm	Weight:2050Kg

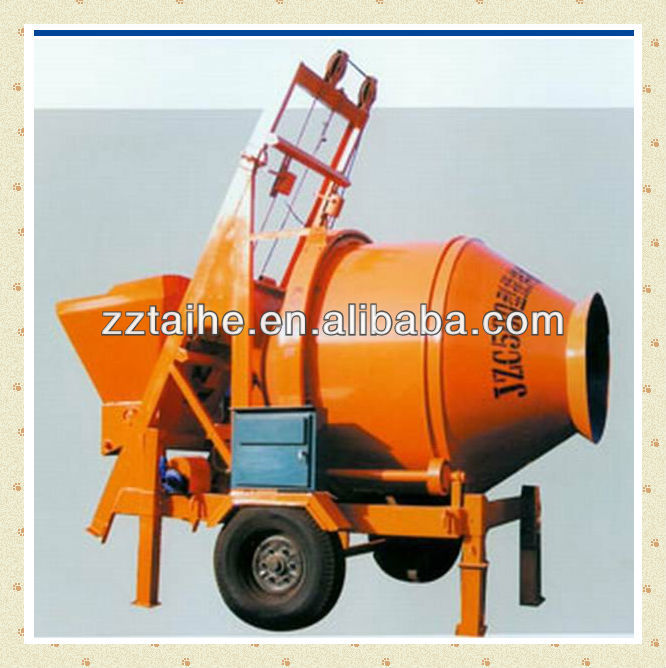

JZC 500 diesel engine concrete mixer

I. Introduction of jzc series concrete mixer

1.JZC series concrete mixer are self-loading which can mix plastic and half dry hard concrete.

The machine mixes when the double-cone mixer drum rotates clockwise and discharges when it rotates reversally. The mixer drum is driven by the ring gear.

2.It has strong points such as reliable rotation, low noise and energy consumption, compact structure, smooth running. Moreover easy operation, high quality mix and production efficiency are also its advantages.

3.it is the ideal machines for construction sits, road, bridge project, hydroelectric power and small and medium concrete components factory.

II.Parameters ofJZC 500 diesel engine concrete mixer

Model		JZC500
Capacity of discharging		500L
Capacity of loading		750L
Capacity of water tank		110L
Drum rotating speed		13r.p.m
Capacity per hour		13-18m3/h
Powered of diesel engine		16HP CHANGFA
Power source		Diesel engine,single cylinder, Water-cooled with radiator With battery starter
Max. towing speed		20Km/h
Overall size		3450×2340×3200mm
Weight		2050Kg
