1.high grinding ratio, 2.low comsuption, 3.Professional manufacturer, 4.Most competitive price - details see: https://www.machineto.com/hot-selling-energy-saving-dry-ball-mill-for-mineral-selecting-10314312

Product Introduction

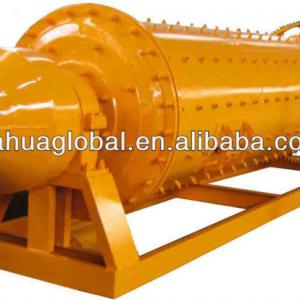

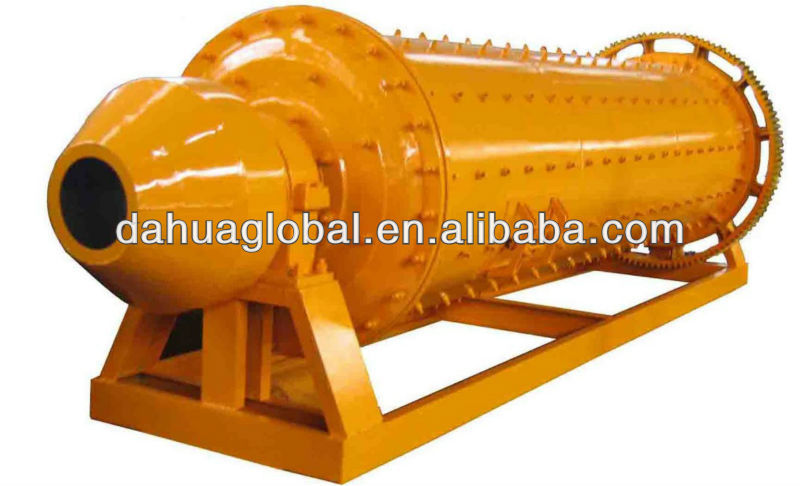

Dry ball millis the key equipment to crush materials after breaking.It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal processing and the glass ceramic production industry, and is able to carry out dry milling of various ores and other millable materials.

Main Function

It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal processing and the glass ceramic production industry, and is able to carry out dry milling of various ores and other millable materials.

Principle of Operation

Dry ball mill, a kind of horizontal cylinder rotation equipment based on outer gear transmission, includes into two containers as a grate energy-saving ball mill. Materials firstly enter into the first container of the dry ball mill through the feeding hallow shaft by the feeding equipment in a helical and even manner. The first container is equipped with a staged or corrugated lining board, filled with steel balls of various specifications which may be lifted to a certain height under the centrifugal force caused by the rotation of cylinder and then fall down to impact and mill raw materials. After coarse milling, raw materials will enter into the second container through the single-layer diaphragm, which is embedded with flat lining board and filled with steel balls to further mill raw materials. After that, power will be discharged from the discharging grate plate, indicating the completion of milling.

Features

Our dry ball mill consists of feeding part, discharging part, and feedback part, transmission part (gear motor, small transmission gear, motor and control panel), featured by favorable abrasive resistance, stable operation and reliable working.

Technical Parameters

Model & specification	Rotation speed of cylinder (r/min)	Ball load (T)	Feedingparticle size (mm)	Discharging particle size (mm)	Output(t/h)	Motor power(kw)	Weight(t)
Φ900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Φ900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.5
Φ1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	11.5
Φ1200×3000	32	5	≤25	0.074-0.4	1.6-5	45	12.8
Φ1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	55	13.8
Φ1500×3000	27	8	≤25	0.074-0.4	2-5	90	17
Φ1500×4500	27	14	≤25	0.074-0.4	3-6	110	21
Φ1500×5700	27	15	≤25	0.074-0.4	3.5-8	132	24.7
Φ1830×3000	24	11	≤25	0.074-0.4	4-10	180	28
Φ1830×6400	24	23	≤25	0.074-0.4	6.5-15	210	34
Φ1830×7000	24	25	≤25	0.074-0.4	7.5-17	245	36
Φ2200×5500	21	30	≤25	0.074-0.4	10-22	370	48.5
Φ2200×6500	21	31	≤25	0.074-0.4	14-26	380	52.8
Φ2200×7500	21	33	≤25	0.074-0.4	16-29	380	56
Φ2400×7000	20.4	39.5	≤25	0.074-0.4	20-32	475	68

Tips

The company is responsible for process design, site construction guidance, and equipment installation & commissioning, training of technical personnel, operating personnel, also it can provide services such as turnkey project, operation and technical personnel dispatch, overall solution for contracted mineral separation or the smelting production according to customer requirements. Three guarantees are provided for all products and the warranty for overall unit is one year. Supply of spare parts is carried out on a long-term basis. We firmly believe that science and technology are the ways to create a brand while integrity realizes brilliantness
