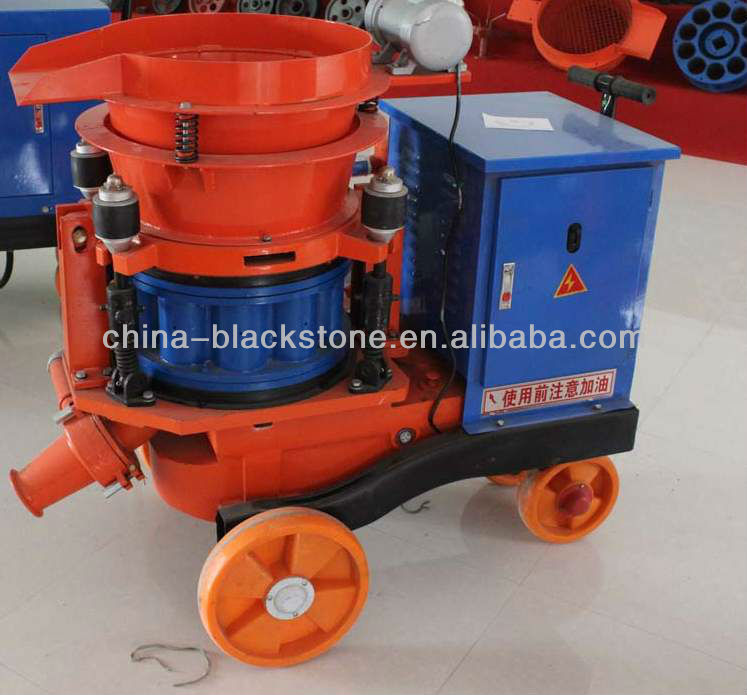

Hot selling coal mine shotcrete machine

Hot selling coal mine shotcrete machine, 1 hot selling, 2 concrete spray machines, 3 used for wet mix - details see: https://www.machineto.com/hot-selling-coal-mine-shotcrete-machine-10096325

Condition:New	Max. Conveying Distance:30m	Max Aggregate Size:15mm	Hose Inner Diameter:51 mm
Air Consumption:10~15m3/min	Place of Origin:Henan China (Mainland)	Brand Name:Blackstone	Model Number:HSP-7
Voltage:380V	Power(W):370	Dimension(LWH):2000x800x1300mm	Weight:800kg
Certification:ISO/ TS9001:2008	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas

Technical data

Output Capacity:	5~7 cubic meter/hour
Maximum Conveying Distance:	30m(horizontal) 20m(verticle)
Inner Diameter of Conveying Hose:	51 mm (2”)
Max. particle size:	15 mm (3/5”)
Working Compressed Air Pressure:	29 ~ 87 psi (0.2 ~ 0.6 MPa)
E-Motor Power:	7.5kW (7.5 hp), 3-phase
Dimensions:	2000 x 800 x 1300 mm
Net Weight:	800 Kg

Applications:

· Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.

· Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

· Refractory spraying and repair for industrial kilns or kilns’ inner liner.

1. Gunite Swimming Pool Construction.

2. Soil Retention and Tetaining Walls.

3. Rockscaping.

4. Refractory Spraying.

5. Mine Support.

6. Tunnel Linings.

7. Concrete Repair.

8. Artificial Rocks and Caves.

9. Low-volume Refractory Spraying.

Features:

Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

Workshop:

Spare parts:
