Sawdust dryer, 20% energy saving, export to 120 countries, capacity can enlarge 10-20%, The latest technology - details see: https://www.machineto.com/hot-sales-sawdust-dryer-wood-sawdust-dryer-sawdust-hot-air-dryer-10294024

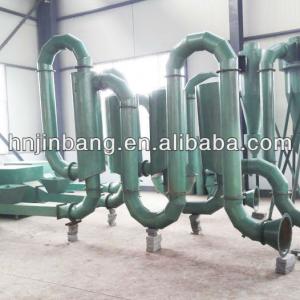

Introduction of Sawdust dryer from manufacturer

For raw materials with heavy humidity which is above 12%, you need to install a dryer before further processing. This Air Current Type dryer can reduce the humidity of wood materials below 12% per time. The Cost of this Air Current dryer is much lower than Rotary dryer. It is professionally designed for drying different kinds of wood sawdust. It has advantages of low cost, low consumption, high capacity, easy operation and maintainace, etc. In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.

Mechanical structureand working principle:

Regarding S-I and S-II Type dryer (With one stove),it is suitable to process materials which moisture content between 20%-25%.It can reduce the MS to 8%-12% one drying time. Regarding S-III (With two stoves),it is suitable to process materials which moisture content between 35%-50%.It can reduce the humidity to 8%-12% one drying time. That means it can reduce approx.30% for one drying time. But if the humidity of materials is lower than 35%, the capacity will be increased with less of fuel.

Technical Specification:

Model	S-I Type dryer with one stove
Capacity (Kg/hour)	300-350
Size of Input material (Diameter) mm	< 3 & < 5
Temperature of Hot Air	180°C~250°C
Power (Kw)	4
Gross/Net Weight (Kg)	1300/1200
Overall Dimension (L*W*H) m	10*1.0*2.0m
Packing Dimension (mm)	2440*1220*2150

Model	S-2 Type dryer with one stove
Capacity (Kg/hour)	400-500
Size of Input material (Diameter)mm	& <5
Temperature of Hot Air	180-250
Power (Kw)	4
Gross/Net Weight (Kg)	900-1500
Overall Dimension (L*W*H) m	18m*3. 0m*5. 0m
Packing Dimension (mm)
