HOT SALE!!!WSE200 portable ac dc square ware tig welder 200amps

ac dc square ware tig, 1.With standard accessory, 2.CE,OEM, 3.High duty cycle, 4.energy saving,econo - details see: https://www.machineto.com/hot-sale-wse200-portable-ac-dc-square-ware-tig-welder-200amps-10137773
Type:OtherPlace of Origin:Fujian China (Mainland)Brand Name:TEKModel Number:WSE200
Voltage:18VCurrent:20-200Rated Capacity:5.63KVARated Duty Cycle:60%
Dimensions:545*345*450Weight:20.5KGUsage:weldColor:Red
Frequency:50Hz/60HZ
HOT SALE!!!WSE200 portable ac dc square ware tig welder 200amps
contact supplier for HOT SALE!!!WSE200 portable ac dc square ware tig welder 200amps

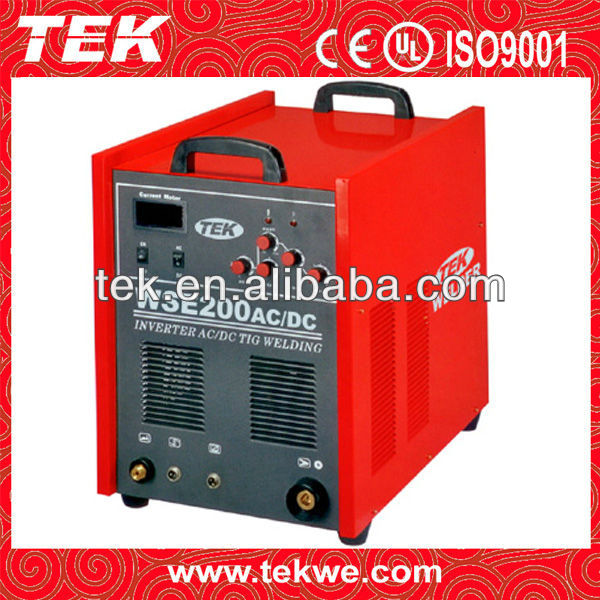

WSE200 portable ac dc square ware tig welder 200amps

1.Stable arc, easy to fill in the wire.
2.Pedal control for current.
3.Compact, low noise.
4.DC welding for stainless stell, alloy steel, carbon steel, copper and other color metal, AC welding for aliminium

Technical specifications
ModelWSE200AC/DC TIG
Imput VoltageAC.(single Phase)110V~240V±15%50Hz
Rated input power capacity4.5KW
No-load voltage rated56V
Regulation of output current20-200A
Rated output coltage18V
Duty cycle60%
Arc-sartingHF
Efficiency85%
Power factor0.93
Insulation classB
Weight20.5Kg
Overall dimension540*345*450mm
Protection class of caseIP21
Pre-flow0-2S
Clean width20-80%
Down-slope time0-5S
Pastflow time2-10S
Remote controlNo
Max welding thichness with AC3mm


HOT SALE!!!WSE200 portable ac dc square ware tig welder 200amps
Packaging Detail:Carton, Wooden Pallet
Delivery Detail:20days
