wet ball mill, 1.Long serving life, 2.Low cost and low noise, 3.ISO9001:2000&CE, 4.Low energy consumption - details see: https://www.machineto.com/hot-sale-wet-ball-mill-10314648

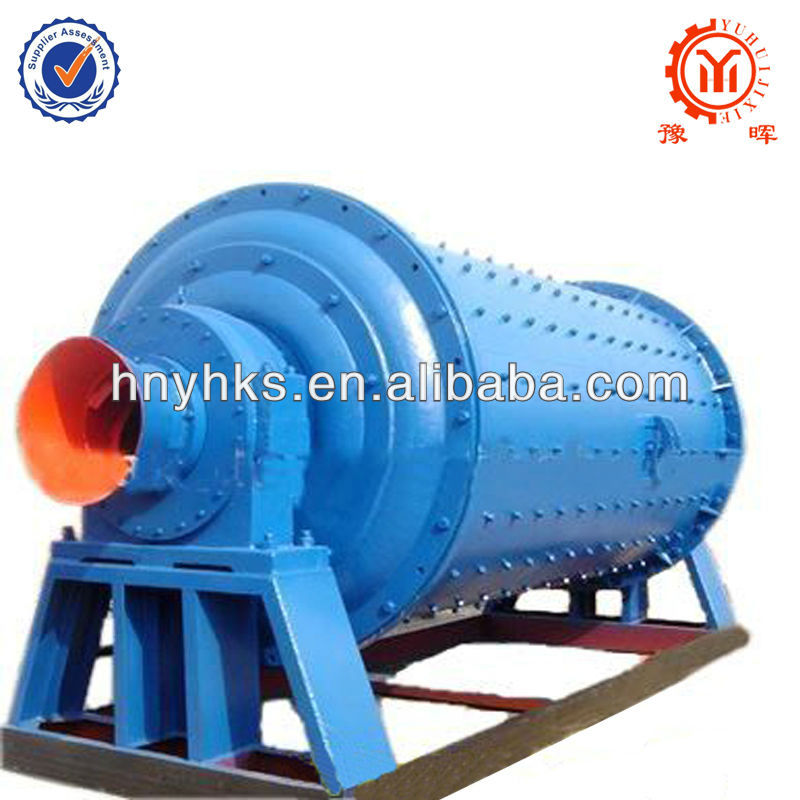

Hot Sale Wet Ball Mill

1. wet ball mill application:

Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different ways of expelling mine.

To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

Ball mill is the key milling equipment after material has been crushed. it is widely used in cement silicate, new construction material, refractory material, chemical ferilizer, ferrous metal and non-ferrous metal as well a ceramics, it is widely applied to dry or wet grinding for ores and grindable materials.

2.wet ball mill working principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

3.wet ball mill main technical parameter:

Model	Speed of bucket (r/min)	Ball capacity(t)	Size of feed opening(mm)	size of outputting feed (mm)	Production(t/h)	Power (kw)	Weight (T)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	24	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	475	56
2400×3000	21.6	25.8	≤25	0.075-0.4	7.8-18	245	59.2

Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
