Hot sale! UV Flatbed Printer with SPT1020 Printhead

UV LED FLATBED PRINTER, 60sqm/h, SPT1020 heads, CMYK LC LM W Varnish, 1440dpi, 8 heads - details see: https://www.machineto.com/hot-sale-uv-flatbed-printer-with-spt1020-printhead-10068643
Type:Inkjet PrinterCondition:NewPlate Type:Flatbed PrinterPlace of Origin:Shandong China (Mainland)
Brand Name:NtekModel Number:YC2513SUsage:all sheet materialsAutomatic Grade:Automatic
Color & Page:CMYK LC LM W VVoltage:220VDimensions(L*W*H):3965 (L)*2080 (W)*1260 (H) mmWeight:1000KG
Certification:CEAfter-sales Service Provided:Engineers available to service machinery overseasmachine color:blueprint media:glass, ceramic, ceiling, aluminum sheet, wood board, etc
Hot sale! UV Flatbed Printer with SPT1020 Printhead
contact supplier for Hot sale! UV Flatbed Printer with SPT1020 Printhead


UV LED FLATBED PRINTER

Specifications as below:

Product Model

Ntek-YC2513S

Printhead Technology

Drop-on demand piezo electric

Printhead control

Printhead voltage is software adjustable

Printhead Type

SPT1020-35pl

Printhead Number

4/5/6/7/8

Ink Characteristics

UV Curing Ink

Ink reservoirs

Refillable on the fly while printing/1000ml per color

Lamp

UV LED lamp/Mercury lamp

Color Control

ICC based color,curves and density adjustment

Printhead arrangement

C M Y K

C M Y K W/C M Y K V

C M Y K W W/C M Y K LC LM/C M Y K W V

C M Y K LC LM W/C M Y K LC LM V

C M Y K LC LM W W/CC MM YY KK/C M Y K LC LM W V

Printhead Cleaning System

Positive Pressure Cleaning

Guide Rail

Taiwan HIWIN(THK optional)

Working Table

Vacuum Sucking

Printing Size

YC2513S:2.45x1.22m

Print Interface

USB2.0

Media Thickness

0-100mm, higher can be customized

Printing Resolution

720*360dpi,720*720dpi,360*1080dpi,720*1080dpi,

720*1440dpi,1440*1440dpi

Printing Speed

2 pass3 pass4 pass6 pass8 pass

12 pass

65sqm/h45sqm/h30sqm/h22sqm/h15sqm/h

10sqm/h

Life of printed image

3 years(outdoor),10years(indoor)

File Format

TIFF,JPEG,Postscript3,EPS,PDF etc.

RIP Software

UltraPrint , Photoprint

Power Supply

220V 50/60Hz(10%) >15A

Operation Environment

Temperature 20 to 28°C,Humidity 40% to 60%

Equipment Dimension

YC2513S:3965 (L)*2080 (W)*1260 (H) mm

Packing Dimension

YC2513S:4200 (L)*2300 (W)*1400 (H) mm

Equipment Weight

YC2513S:1200kg

Warranty

1 year exclude the printhead,ink filter, ink pump

After-sale Service

24-hour on-line realtime technology service

Updated UV flatbed printer with SPT1020 printhead, 1440dpi, 8 heads

Samples printing

Print on canvas with beautiful color, high resolution

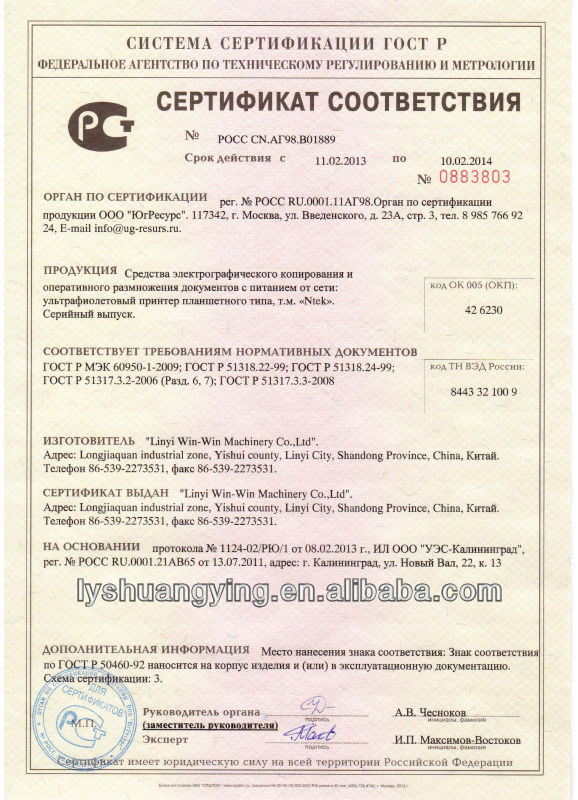

Russian Customs permission to import our machine.

Customers come to visit our plant.

Company Introduction

Linyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong, China. The Enterprise is a high-tech machinery manufacturer, integrated with the R&D, production, sales and maintenance in a whole. The Enterprise produce the large scale equipments, such as CNC routers, plasma cutters, flatbed printers, laser routers, and laser cutters etc. And they are applied in decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, art-ware industry, furniture industry etc.

Aftersales Service

One year warranty

Our engineer available overseas service

24 hours on line technical support

Futher more info, pls feel free to contact me

Skype:lysycnc

Email:dorakoo at lysycnc.cn

Hot sale! UV Flatbed Printer with SPT1020 Printhead
Packaging Detail:wooden box
Delivery Detail:7 working days
