Raymond mill :, 1.its output can increase 10-20%;, 2.Minerals Moh's hardness:below scale 9.3;, 3.cheap price raymond mill; - details see: https://www.machineto.com/hot-sale-raymond-mill-price-raymond-grinding-mill-mine-mill-manufacturer-10314436

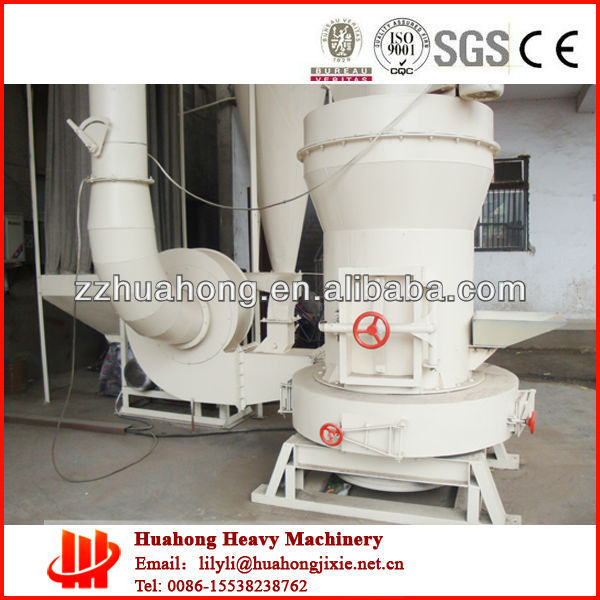

Hot sale raymond mill price,raymond grinding mil,Mine mill manufacturer

Huahong company top view :

HUAHONG machinery is specializing in making power production line,crushing production line,sand making/stone washing production line,all kinds of auxiliary equipments, for example:conveyor,feeding machine,vibrating screen etc. If you have some need, Pls donot hesitate to contact me.13027783958.

Application of raymond mill :

Raymond mill produced by HUAHONG company is mainly used to grind non-inflammable and non-explosive materials with Mohs hardness below 7 and moisture content below 6% such as barite, calcite, potash feldspar, talcum, marble, limestone, ceramic, glass, etc .Raymond mill can be used in mining, chemical industry, construction materials, metallurgy and so on. The final products can be adjusted freely from 100 mesh to 425 mesh.

Working Principle of raymond mill :

Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding.After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products. this is our raymond mill.

Technical parameter of raymond mill :

Model data	3R1410	3R2615	3R2714	4R2714	3R3016	4R3016	4R3216	5R4119	6R4525
Max. feeding siz (mm)	5-8	20	20	15-25	15-25	15-25	25	30	30
Fineness of product (mm)	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044
Capacity/Shift (t/8h) (Range diff materials)	1-10	2-25	2-28	3-30	3-34	3-36	3-38	6-76	10-120
Speed(r/m)	280	170	170	170	178	178	130	105	82
Inner ring diameter (mm)	Φ405	Φ780	Φ830	Φ830	Φ910	Φ910	Φ970	Φ1280	Φ1770
Roller diameter (mm)	Φ140	Φ260	Φ270	Φ270	Φ300	Φ300	Φ320	Φ410	Φ450
Height (mm)	100	150	140	140	160	160	160	190	250
Main motor power(kw)	Y160M-6-7.5	Y225S-8-18.5	Y255M-8-18.5	Y225M-8-22	Y225M-8-30	Y225M-8-30	Y225S-4-37	Y280S-4-75	Y315M-4-132
Fan motor model (kw)	Y132S-4-5.5	Y180M-4-15	Y180M-4-18.5	Y180M-4-18.5	Y180L-4-22	Y180L-4-22	Y220M-4-30	Y25M-4-55	Y315M-4-132
Classifier motor (kw)	Y90L-6-2.2	Y112M-6-2.2	Y112M-6-2.2	Y112M-6-2.2	Y132S-6-3	Y132S-6-3	YC1200-4A-5.5	YC1200-4B-7.5	Y160M-4-11
Dimensions(mm)	3340×2161×3246	5970×4000×5000	5970×4000×5000	5970×4000×5000	7500×4500×6200	7500×4500×6200	9900×5800×8500	7850×8000×9700	8850×10500×1100
Weight(kg)	2500	3800	3850	3900	7000	7500	14000	257000

Raymond mill star rack :

Raymond millcyclonedustcollector:

Welcome to visit our factory
