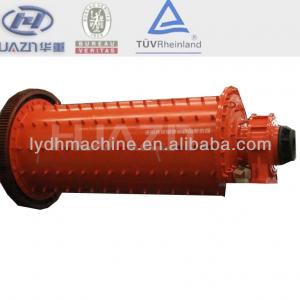

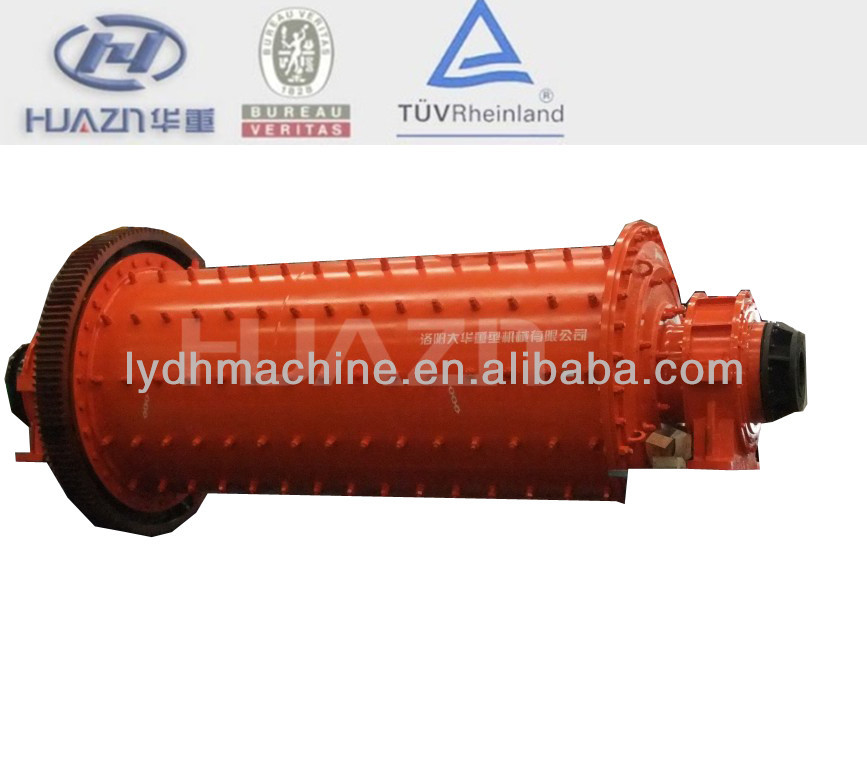

Hot Sale !! Overflow and grate Iron ore ball mill

Product Description

1 Our high-efficiency and saving-energy ball mill adopts rolling bearing substituting for sliding bearing, which can save energy 10-20% compared with sliding bearing.

2 Adopting oil grease in place of thin oil lubrication station, and large-type mill needs not to be equipped with high-and-low pressure lubrication station with high cost.

3 Lattice-type ball mill has lattice panels at the discharge end, with more volume of ball, larger installation power, higher capacity and more coarse discharge granularity and usually used in primary crushing;

4 Spill-over ball mill are usually used in fine grinding with lattice panels at the end and with higher discharge opening, less volume of ball, smaller installation power, lower production capacity and finer discharge granularity.

Performance Parameter

Model	Barrel (mm)		Rotate speed of barrel (r/min)	Max. feed size (mm)	Max. feed temperature (0C)	Mesh Size (mm)	Capacity (t/h)	Inclination angle of barrel (°)	Power (kw)	Dimension (mm)	Weight (kg)
	Diameter	Length
ZM2540	2500	4000	17-24	300(40)	50	30-50(1-10)	20-30	0-2	110-132	7800×4900×4800	53400
ZM2560	2500	6000	17-24	300(40)	50	30-50(1-10)	25-40	0-2	160-200	8600×4700×5800	73608
ZM3030	3000	3000	14-20	300(50)	50	30-50(1-10)	25-40	0-2	132-160	6300×4700×5600	63560
ZM3040	3000	4000	14-20	300(50)	50	30-50(1-10)	30-50	0-2	160-220	7300×4700×5600	67957
ZM3060	3000	6000	14-20	300(50)	50	30-50(1-10)	40-60	0-2	250-280	9300×4500×5400	98600

To give you a responsible quotation, you can inform us the following information:

1). What's the material you are going to deal with?

2). What's the granularity of the material?

3). What's the granularity of the final products are you going to achive?

4). What's the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.
