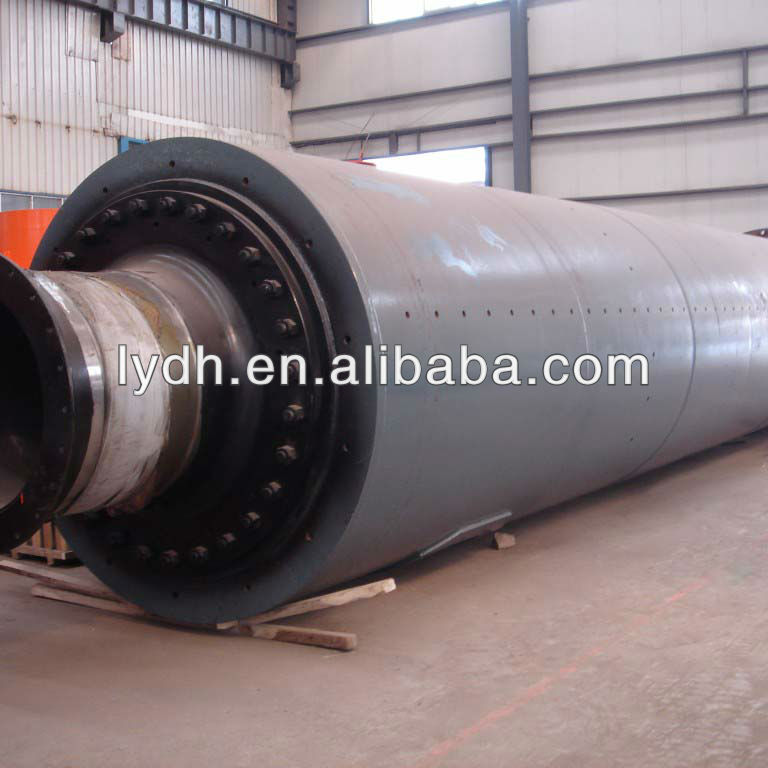

hot sale huazn Fine and high-capacity Tube mill
grind mill, 1.Low price, 2.High efficiency, 3.Save energy, 4.Good after sale service - details see: https://www.machineto.com/hot-sale-huazn-fine-and-high-capacity-tube-mill-10284698
| Condition:New | Type:Grinder,Tube mill | Product Type:Other | Place of Origin:Henan China (Mainland) |
| Brand Name:HUAZN | Model Number:MQ | Power(W):depends | Dimension(L*W*H):as your required |
| Weight:as your required | Certification:CE,ISO | Warranty:one year | After-sales Service Provided:Engineers available to service machinery overseas |
| Color:Yellow,Silver,Red.. | Application:Ore, Cement, Road, Bridge | Certificate:ISO9001:2000 | Before and After Sale Service:available |
| Motor:Chinese famous brand or as request |
| Fine and high-capacity tube mill refers to ratio of length to diameter above 4; cylinder divided into 2 or 3 storehouses, and is also called as cement grinding mill. It is usually used in cement plant for dry grinding raw material and grog, and also can be used in chemistry, metallurgy etc; after special alteration can be used in fine crushing slag or water residue. |
| Model | Barrel(mm) | Rotate speed of barrel(r/min) | Ball load (t) | Capacity(t/h) | Power (kw) | Weight (kg) | ||
| Diameter | Length | Raw meal | Clinker | |||||
| MQ1245 | 1200 | 4500 | 30 | 4.8 | 0.4-3.8 | 0.3-2.8 | 45 | 13500 |
| MQ1557 | 1500 | 5700 | 27 | 12.5 | ~5.5 | ~4.5 | 132 | 25000 |
| MQ1564 | 1500 | 6400 | 27 | 15 | ~6.4 | ~5.0 | 160 | 25800 |
| MQ1850 | 1830 | 5400 | 24 | 14.5 | ~6.0 | ~5.3 | 180 | 34740 |
| MQ1864 | 1800 | 6400 | 24 | 18.5 | ~6.9 | ~5.5 | 210 | 36500 |
| MQ1870 | 1800 | 7000 | 24 | 21 | ~7.0 | ~6.0 | 245 | 38000 |
| MQ2265 | 2200 | 6500 | 21.4 | 31 | ~15 | ~14 | 380 | 52800 |
| MQ2270 | 2200 | 7000 | 21.4 | 34.5 | ~17 | ~15 | 380 | 54000 |
| MQ2295 | 2200 | 9500 | 21.4 | 38 | ~19 | ~16 | 475 | 62000 |
| MQ22110 | 2200 | 11000 | 21.5 | 50 | ~25 | ~17 | 500 | 79000 |
| MQ22130 | 2200 | 13000 | 21.5 | 60 | ~28 | ~18 | 630 | 90600 |
| MQ2480 | 2400 | 8000 | 20.4 | 39.5 | ~22 | ~15 | 475 | 86400 |
| MQ24100 | 2400 | 10000 | 20.4 | 49 | ~30 | ~19 | 630 | 96000 |
| MQ24110 | 2400 | 11000 | 20.4 | 58 | ~32 | ~20 | 630 | 99000 |
| MQ24130 | 2400 | 13000 | 20.4 | 65 | ~45 | ~23 | 800 | 116000 |
| MQ26110 | 2600 | 11000 | 19.6 | 66 | ~46 | ~25 | 800 | 132000 |
| MQ26130 | 2600 | 13000 | 19.6 | 80 | ~50 | ~30 | 1000 | 151000 |
| MQ3090 | 3000 | 9000 | 18.7 | 85 | ~52 | ~31 | 1000 | 139000 |
| MQ30110 | 3000 | 11000 | 18.7 | 95 | ~58 | ~38 | 1250 | 145000 |
| MQ30130 | 3000 | 13000 | 18.7 | 110 | ~65 | ~42 | 1400 | 172000 |
| MQ32110 | 3200 | 11000 | 18.2 | 112 | ~68 | ~45 | 1400 | 222000 |
| MQ32130 | 3200 | 13000 | 18.2 | 123 | ~70 | ~48 | 1600 | 230000 |
| MQ3485 | 3400 | 8500 | 18.0 | 100 | ~60 | ~40 | 1250 | 206000 |
| MQ34110 | 3400 | 11000 | 18.0 | 120 | ~72 | ~50 | 1600 | 226000 |
| MQ35110 | 3500 | 11000 | 17.0 | 152 | ~78 | ~54 | 2000 | 230000 |
| MQ35130 | 3500 | 13000 | 17.0 | 175 | ~80 | ~56 | 2200 | 260000 |
| MQ3895 | 3800 | 9500 | 16.3 | 123 | ~73 | ~50 | 1600 | 250000 |
| MQ38105 | 3800 | 10500 | 16.3 | 137 | ~76 | ~54 | 1800 | 261000 |
| MQ38120 | 3800 | 12000 | 16.3 | 158 | ~80 | ~58 | 2000 | 275000 |
| MQ38130 | 3800 | 13000 | 16.3 | 172 | ~85 | ~62 | 2200 | 283000 |
Remarks: The weight of machine excludes motor, electric control and grinding media; the transmission mode is edge driving
| Packaging Detail:Standard container, nude or in bulk.. |
| Delivery Detail:30 days |
