Hot sale ball mill for grinding iron ore or other hard materials

ball mill for grinding iron ore, 1 longer lining service life,energy saving, 2 simple to install and operate, 3 ISO ,CCC,CE - details see: https://www.machineto.com/hot-sale-ball-mill-for-grinding-iron-ore-or-other-hard-materials-10314331

Condition:New	Type:Ball Mill,Ball mill	Motor Type:AC Motor	Power(W):18.5-800
Capacity(t/h):1-500 t/h	Place of Origin:Henan China (Mainland)	Brand Name:Bailing	Model Number:BL
Dimension(LWH):All	Weight:3.6-137ton	Certification:ISO9001, 3C,ISO9001:2008 and 3C certificate	Warranty:1year
After-sales Service Provided:Engineers available to service machinery overseas	Application:grinding cement, fireproofing,chemical materials,phosphatic fertilizer	spare parts:steels balls,liner plate	Max feeding size:≤25mm
Min output size:≤0.074mm	Liner:Steel, rubber or silicon	Grinding:dry or net	Install:guide by our superior engineer
Guarantee:12 month

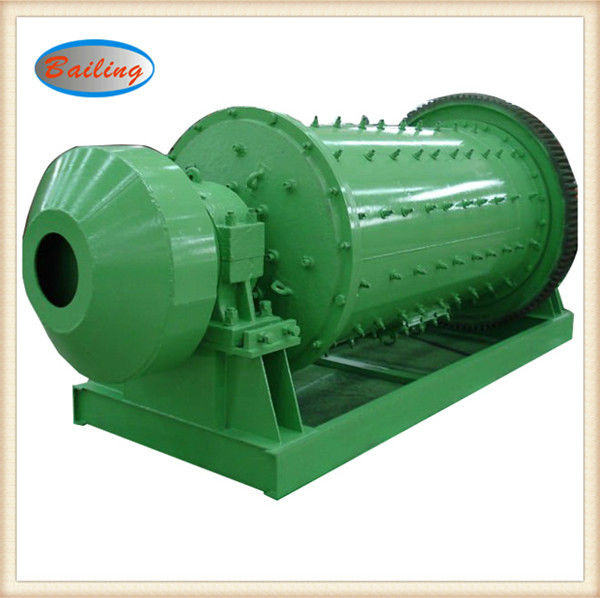

Ball mill for grinding iron ore

Application

Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, corhart, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc.

It is used for grinding various ore and other grindable materials dry or wet.

Structure

Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on.

The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance.

Working Principle

The ball mill is a horizontal rotating device transmitted by the outer gear.

The materials are transferred to the grinding chamber through the quill shaft uniformly.

There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Ball Mill Technical Data

Model	Speed of bucket(r/min)	Weight of ball(t)	Size of feed opening(mm)	size of outputting feed(mm)	Production(t/h)	Power(Kw)	Weight(t)
900*1800	38	1.5	20	0.075-0.89	0.65-2	18.5	3.6
900*3000	38	2.7	20	0.075-0.89	1.1-3.5	22	4.5
1200*2400	32	3.8	25	0.075-0.6	1.5-4.8	45	11.5
1200*3000	32	5	25	0.075-0.4	1.6-5	45	12.8
1200*4500	32	7	25	0.075-0.4	1.6-5.8	55	13.8
1500*3000	27	8	25	0.075-0.4	2-5	90	17
1500*4500	27	14	25	0.075-0.4	3-6	110	21
1500*5700	27	15	25	0.075-0.4	3.5-6	132	24.7
1830*3000	24	11	25	0.075-0.4	4-10	180	28
1830*6400	24	23	25	0.075-0.4	6.5-15	210	34
1830*87000	24	25	25	0.075-0.4	7.5-17	245	36
2200*5500	21	30	25	0.075-0.4	10-22	370	48.5
2200*6500	21	30	25	0.075-0.4	14-26	280	52.8
2200*7500	21	33	25	0.075-0.4	16-29	475	56
2200*9500	21	38	25	0.074-0.4	18-35	475	62
