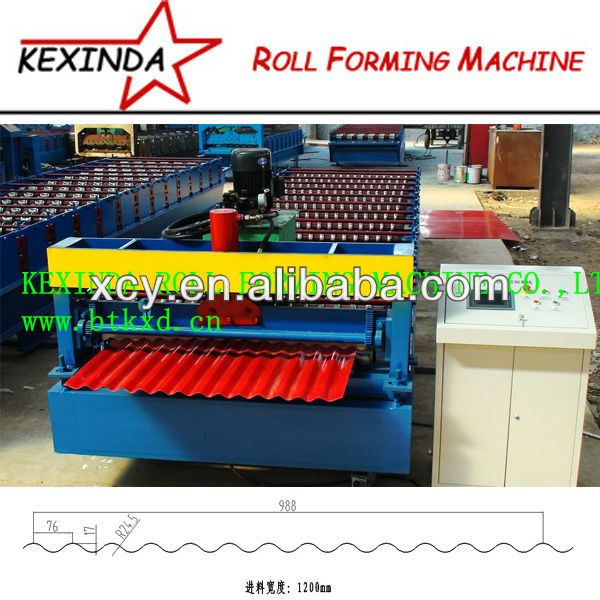

Hot Sale 988 corrugated metal color steel sheet profile machine
Full utilization of material, Unique metal surface protection, High precision in forming and cutting, CE Certification - details see: https://www.machineto.com/hot-sale-988-corrugated-metal-color-steel-sheet-profile-machine-10086657
| Condition:New | Type:Tile Forming Machine | Tile Type:Colored Steel | Use:Roof |
| Production Capacity:8-12 meters per min | Place of Origin:Hebei China (Mainland) | Brand Name:KeXinda | Model Number:Hot Sale 988 corrugated metal color steel sheet profile machine |
| Power(W):4 kw | Voltage:380V/50Hz | Dimension(L*W*H):6500mm*1300mm*1500mm | Weight:4 tons |
| Certification:CE certificate | Warranty:12 months guarantee | After-sales Service Provided:Engineers available to service machinery overseas | any design:as your requirement |
988corrugated metal color steel roll forming machine
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
| Control System | PLC Delta Inverter |
| Main Frame | 300mmH-Beam |
| Main Power | 4 kw |
| Pump Power | 3 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 10m/min |
| Roll Station | 14 stands |
| Roller Diameter | 80mm |
| Hydraulic Pressure | 10-12MPa |
| Forming Size | 988mm |
| Feeding Thickness | 0.3-0.8mm |
| Feeding Width | 1200mm |
| Backboard Thickness | 16mm |
| Chain Size | 20mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 6500mm×1300mm×1500mm |
| Total Weight | 4T |
| Packaging Detail:naked |
| Delivery Detail:30 days after receiving the advanced payment |
