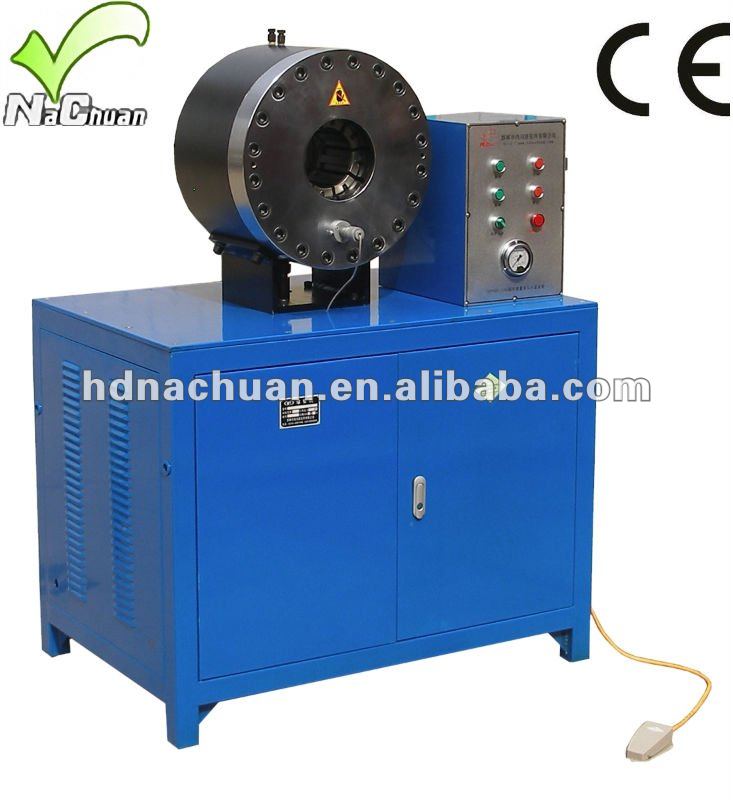

[HOT]Large Calibre Hose Crimping Machine
1.Large opening range, 2.Direct pressure crimping mechanical, 3.Suitable for double elbow processing, Own your own crimping unit - details see: https://www.machineto.com/hot-large-calibre-hose-crimping-machine-10081373
| Condition:New | Type:Other | Pipe Material:Other | Place of Origin:Hebei China (Mainland) |
| Brand Name:NACHUAN | Model Number:NCKY-360BS-A | Voltage:380V | Power(W):5KW |
| Certification:CE | Warranty:1 YEAR | Colour:Blue | Mount:Floorstand |
| Name:hydraulic hose crimping machine | Processing Type:Pipe Belling Machine | Product Type:Other |
![[HOT]Large Calibre Hose Crimping Machine](https://www.machineto.com/img/showcase/hot-large-calibre-hose-crimping-machine-10081373.jpg)
![contact supplier for [HOT]Large Calibre Hose Crimping Machine](/images/inquiry.gif)
This machine is a large caliber hose crimping machine which designed on the basis of our customers' demand during our long-term production sales. With large opening and strong crimping force it can satisfy special application of different customers.
All the dimention mentioned about crimping range means inside diameter of the hose
TECHNICAL SPECIFICATION
Crimping range : 6mm—102mm
Supplied die sets:11(custom-made dies are available)
Die size :104*66\132*110\142*110
Opening :+30mm
Crimping force :1100T
Systematic pressure:31.5MPa
Motor :5.5KW
Voltage : 380V -3-50 HZ
Common discharge:25ml/r
Weight:640Kg
Volume:1015*680*1500
All the dimention mentioned here means inside diameter of the hose
![[HOT]Large Calibre Hose Crimping Machine](https://www.machineto.com/img/lg/hot-large-calibre-hose-crimping-machine-10081373.jpg "[HOT]Large Calibre Hose Crimping Machine NCKY-360BS-A")
| Packaging Detail:plywood carton |
| Delivery Detail:7 days for spot goods |
