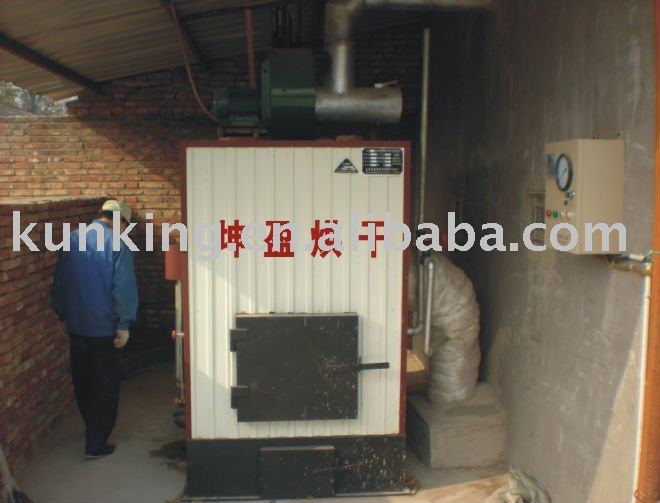

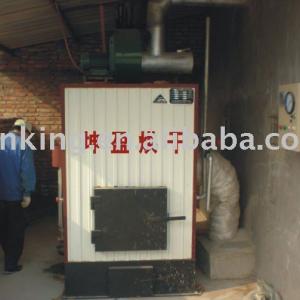

Hot Air Steam Wood Dryer/Drier

Principle of working

This dryer adopts swing style heating device . There're burning room , thermal energy convention room , steam generating room, combustion room , fan and chimney.

1. In burning room , the fuel is burned sufficiently to get hot air .

2.Hot air is forced to kiln through pipe system . At the same time , normal pressure steam produced by steam generator is carried to dry room as data .

3. In drying room, Hot air makes wood drying , steam can make the wood dry same inside and outside at the same time .

Unique Features

The unique steam generating device avoided deformation and crack of timber during drying .

Drying room:

The thickness of the drying room is 80MM , inside it's corrosion resistant aluminum with the thickness of 0.6mm , outside it's color pressed tile . the middle part is filled of rock wool board for insulation

.

Technical parameter
					Kiln's net size(Length/width/height,m)
Measure (m3)	Temperature(°C)	MAX Temperature(°C)	Fan (kw/h)	Moisture rate(%)	Single	Double
8	≥80	160	1.5	<10	4.4×2×2.5
10	≥80	160	2.2	<10	4.5×2.5×3
15	≥80	160	3	<10	4.5×3.5×3
20	≥80	160	3	<10	5.2×4×3
25	≥80	160	3	<10	6×4×3
30	≥80	160	5.5	<10	7×4.5×3	4.5×3.5×3
40	≥80	160	5.5	<10	7×5×3	4.5×4×3
50	≥80	160	7.5	<10	7×6.5×3	5.8×4.5×3
60	≥80	160	7.5	<10	8.5×6.5×3	5.8×4.5×3
80	≥80	160	11	<10	9×8.5×3	7.5×4.5×3
100	≥80	160	11	<10	10.5×8.5×3	6.7×6.5×3
120	≥80	160	15	<10	13×8.5×3	7×6.5×3
150	≥80	160	18.5	<10	16×8.5×3.5	7.8×8.5×3.5

Some details can be adjusted as your requirement.
