1.mechanical transmission, 2.mechanical lock, 3.mechanical gear, 4.automatic risen&fallen, 5.automatic feed - details see: https://www.machineto.com/hot-2013-good-quality-and-low-price-z3050-x-16-radial-drilling-machine-10125373

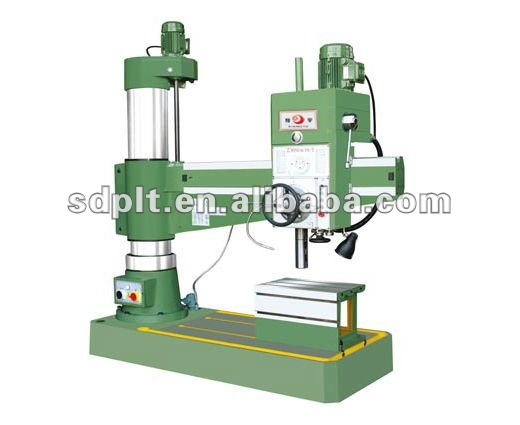

1.The radial drilling machine of Model Z3050×16Features

It is one of the large multi-purpose equipments, which is characterized by the high efficiency ,close tolerance, hydraulic retransmission with a machine. Drilling diameter of 50 mm,and is used to drill, expand, ream, groove, tap the middle and large parts and even to bore the holes if it equipped with the necessary devices. This type of machine in the manufacturing and/or repair fields; and it has been awarded the top quality medal of Shangdong Province many times and sells well at home and abroad.

2.Specification

SPECIFICATION	UNIT	Z3050 x16
Max. drilling diameter	mm	Casting 50/ steel 35
Distance between spindle nose and working surface of base plate	mm	260-1050
Distance between spindle centerline and column generatrix	mm	360-1600
Spindle travel	mm	220
Spindle taper(Morse No.)	---	5
Range of spindle speeds	r.p.m	78, 135, 240, 350, 590, 1100
Number of spindle speeds	---	16
Range of spindle feeds	mmr/r	0.10, 0.16, 0.22, 0.25, 0.35, 0.56
Number of spindle feeds	---	16
The rocker turning Angle	°	360
Main motor power	kw	2.2
Rising and falling power	kw	1.1
N.W	kg	2400/3000
Overall dimensions(L*W*H)	mm	2170*810*2450
