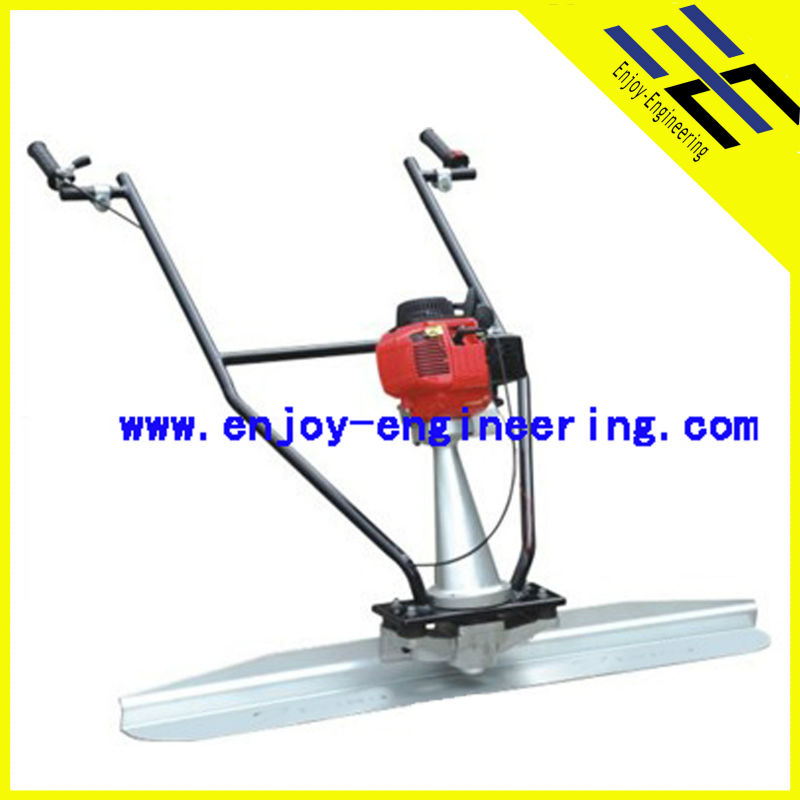

concrete surface screed, powered by petrol engine, provides uniform vibration over the entire blade length . - details see: https://www.machineto.com/honda-concrete-screeds-for-sale-10119272

Vibrator truss screed features :

Operation & Low Maintenance Design:
Screed, powered by petrol engine, provides uniform vibration over the entire blade length and enhances concrete compaction, makes it possible to level up to 4 times more concrete than the traditional method, and do it more accurately. Only weight approximately 12kg, it's one of the lightest portable unit on the market.
1) Specially design, hardened aluminum blade ensuring a smoother finish than conventional screeds.
2) Heavy rubber mounts to reduce the vibration level on the handle.
3) Adjustable handle in height, vertical & horizontal position (optional)
4) The rounded ends of the blade make it easy to go around obstacles
5) The tilt-up stand keeps the engine out of concrete or off the ground obstacles.
6) One piece casting body easy connect to engine.
7)Emergency stop switch available.
8) 7 different working widths: 4ft/1. 2m, 6ft/1. 8m, 8ft/2. 4m, 10ft/3. 0m, 12ft/3. 7m, 14ft/4. 5m, 16ft/4. 9m.
9)Easily changed blades. 7k

Surface Finishing Screed
Model	SF1-C		SF1-H
Engine	Air-cooled.2-cycle		Air-cooled.4-cycle
Engine Type	Chinese engine		Honda GX35
Power : kw(hp)	1.4(1.9)		1.1(1.5)
Weight: kg(lbs)	12.7(28)		12.7(28)
Blade
Size:m(ft)	1.22(4)	1.8(6.0)	2.44(8.0)
Weight:kg(Ibs)	2.9(6.4)	4.36(9.6 )	5.81(12.8)
Size:m(ft)	3.66(12.0)	4.47(14)	4.88(16)
Weight:kg(Ibs)	8.72(19.2)	10.16(22.4)	11.61(25.6)
