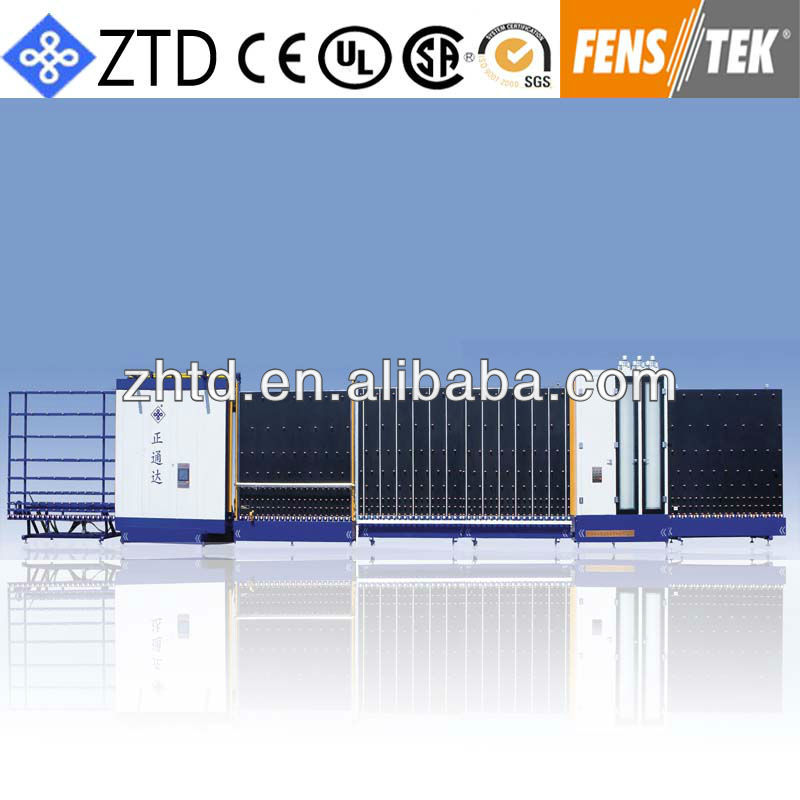

Hollow Glass Production Line
1.CE & SGS certificate;, 2.Auto-distinguish coating glass and Low-E glass, 3.Electric parts imported from overseas country. - details see: https://www.machineto.com/hollow-glass-production-line-10085127
Condition:New | Place of Origin:Shandong China (Mainland) | Brand Name:ZHTD | Model Number:LBP2200A/2500A |
After-sales Service Provided:Engineers available to service machinery overseas | Warranty:24 months | Certificate:CE& SGS | Colour:Optional |
MOQ:1 set | Instruction:English |
Consists :
- Input conveyor;
- Washing and dry;
- Light detection;
- Aluminum frame position;
- Close sheets glass and plate press;
- Overturn part.
Specialities:
- Automaticly distinguish the coating of coated glass and the Low-E glass with digisplay;
- Keep glass in static state when adding glass material;
- Process same edge glass, double glass, including three layers glass;
- Touch screen human-computer interface;
- Self-diagnosis with high degree of automation;
Technical parameter:
Parameter name | Equipment model | ||
LBP2200A | LBP2500A | ||
Power supply | 380V,50HZ | 380V,50HZ | |
Total power | 42.8KW | 46.3KW | |
Process glass size | Max | 3000*2200mm | 3000*2500mm |
Min | 400*400mm | 400*400mm | |
Original glass thickness | 3-25mm | 3-25mm | |
Working speed | Washing speed | 3-9m/min | 3-9m/min |
Conveying speed after washing | 15-45m/min | 15-45m/min | |
Outline dimension | L*W*H(mm) | 19600*2500*3380mm | 19600*2500*3680mm |
Net weight | 7800kg | 8500kg |
Packaging Detail:in wooden case/pallet |
Delivery Detail:35 days after deposit receipt and other requirement confirmed |
