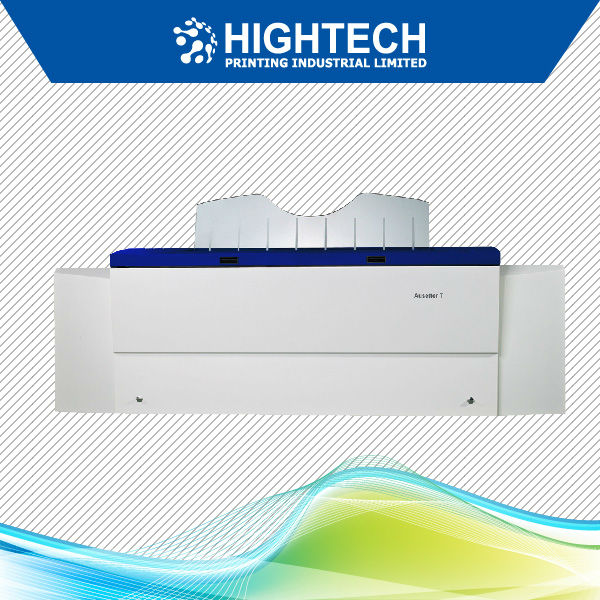

Hign precision Thermal platesetter

Hign precision Thermal platesetter, 1.32-64channel discrete 830nm laser diode, 2.External drum, 3.Thermal CTP Plate - details see: https://www.machineto.com/hign-precision-thermal-platesetter-10072898

Condition:New	Type:Conventional Plate Processor	Automatic Grade:Automatic	Place of Origin:Guangdong China (Mainland)
Brand Name:AMSKY	Model Number:Ausetter T Series	Voltage:Single phase:200V-240V	Power(W):Max power(Peak value):4KW
Dimension(LWH):1,9001,2001,000 mm/2,5301,050950 mm	Weight:800 kg/900 kg	Certification:GB/T19001-2000 idt ISO9001:2000 Standard	Warranty:12 months
After-sales Service Provided:Engineers available to service machinery overseas	product:Hign precision Thermal platesetter

Technical Specifications

CTP Ausetter T Specifications
Model	Ausetter 800T F	Ausetter 800T S	Ausetter 800T E	Ausetter 400T E	Ausetter 400T S
Exposing Method	External Drum
Imaging System	64-channel	48-channel	32-channel	24-channel	32-channel
	Discrete 830nm laser diode
Throughput	29 plates per hour	22 plates per hour	16 plates per hour	16 plates/hour	22 plates/hour
	1,030mm×800mm 2,400dpi			800×660mm 2,400dpi
Plate Size	Max. 1,130mm×900mm, min.400×300mm			Max.800×660mm,Min. 400×300mm
Exposing Size	Max.1,130mm×884mm, min. 400mm×284mm			Max.800×646mm
Media Type	830nm thermal plate
Plate Thickness	0.15mm to 0.3mm
Resolutions	2,400dpi
Repeatability	Continuous exposing for four times or above on the same plate with a temperature of 23°Cand humidity of 60%)
Interface	USB2.0
Plate Loading	semi automatic
Weight	900KG			800KG
Size (W×D×H)	2,530mm×1,050mm×950mm ( W×D×H )			1,900×1,200×1,000mm(W×D×H)
Power Supply	single-phase: 220AC, +6%, -10%, Power Consumption: 4KW
Environment	recommended: 21-25°C,Max. 18-26°C,humidity: 40-70%

Use conventional plate
Use conventional plate is the lowest consumable cost at present moment.

Mature and reliable technology of 32-64channel discrete 405nm laser diode
The Ausetter 800 can produce extremely sharp and clear screen dots with the conventional plate ( long running life ).It is completely daylight operation and with a stable working life over several ten thousands hours.So it comes out more cost effective.

External drum design
Using the bend and clamp technology from the printing machines.It turns out good registration and quality dots with an increditable speed up to 29 (1030X800) plate per hour.

Autofocus
Our autofocus feature can keep constant distance between the laser and plate in real time mode. That is can eliminate error arise from any irregular surface of the plate during the plate production in turns can save a lots of material and time.

Unique screen control technology
With our precise dot compensation technology we can generate distinguishable gray scale between 1 to 99 %.

Easy operation
With highspeed USB2.0 interface. Ausetter 800 can easily install and operate like a printer with the plug and play technology.
