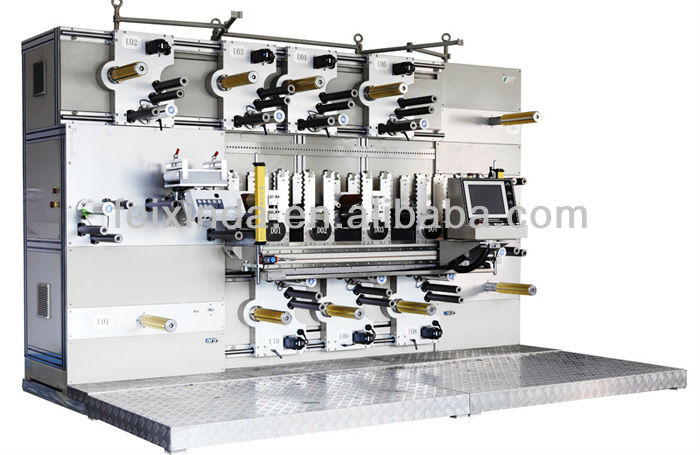

High Speed Rotary Die Cutting and Slitting Machine

Rotary Die Cutting and Slitting Machine, 1: PLC controlling system & modual, 2: Japanese Servo motor - details see: https://www.machineto.com/high-speed-rotary-die-cutting-and-slitting-machine-10333039
Condition:NewType:Die Cutting and Slitting MachineComputerized:YesPlace of Origin:Guangdong China (Mainland)
Brand Name:FXDModel Number:X0525BA10Voltage:AC380VPower(W):15KW
Dimension(L*W*H):3150*2000*2200MMWeight:3200KGCertification:ISO9001Warranty:one year
After-sales Service Provided:Engineers available to service machinery overseasName:Rotary Die Cutting and Slitting Machinefunction 1::slittingfunction 2::die cutting/cutting/punching
function 3::discharging waste materialfunction 4::laminating materialControlling system of tension:PLC control system & modualType of applied material:roll shape
Max height of material:0.3mmTouch screen:7.5inch, colorfulMotor:Japanese servo motor

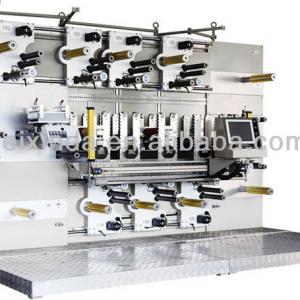

High Speed Rotary Die Cutting and Slitting Machine
contact supplier for High Speed Rotary Die Cutting and Slitting Machine


Adhesive lable rotary slitting and die cutting machine

The complete process including: slitting --- laminating --- die cutting --- discharging waste material --- rolling the useful material, and this process will be done repeatedly upon your product's craftship.

The process of unrolling material through a press and utilizing a precision engraved steel cylinder die to roll over & cut specified shapes. Your material may be carried by a release liner and rolled onto a new core or sheeted into pads. Rotary dies can be made to cut all the way through your material and its release liner or through the material and down to the release liner

Applications:

1: kinds of film for electronic products: reflecting film, diffusing film, polarizer film

2: kinds of adhesive/sticking series: adhesive label, sticking label,gule or adhesive layer for mobile product, conductive adhesive, insulation layer

3: Shockproof and dustproof material: poron pad,rubber mat, EVA tape, rubber cushion, Poron cushion

Main features:

1: This rotary slitting and die cutting machine is suitable for deal with product in high volume.

2: Two sets of tension controlling system to make sure the controlling tension depend on the habit of operator and the crafts of product.

3: The operating monitoring system, emergency switch, and safety sensor for main die-cut station to protecting the operator.

4: The computerized controlling system can store 200 craft procedure formula.

Standard parameters:

X0525BA10 Rotary slitting and die cutting machine

Max web size: mm250
Max speed: meter/min56
Max thickness of material: mm0.3
Type of materialIn roll
Max diameter of material: mmΦ400
Number of die-set stand: pcsfive
Max winding draft tension: newton/meter100
Net weight: kg3200
Dimension: mm3510*2000*2200
Power380V, 3phase,50HZ 21kw
Number of standard shaft: pcs10

Sample for references:

Adhesive label sample 1:

dustproof foam for electronic product sample 2:

High Speed Rotary Die Cutting and Slitting Machine
Packaging Detail:The package of Rotary Die Cutting and Slitting Machine1: inner package: PET film2: outer package: wooden box in fumigation
Delivery Detail:within 22 days
