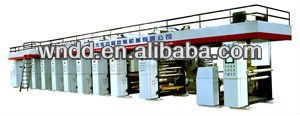

High-speed computerized color register rotogravure machineryYDJ200G

1Printing speed: 200m/min, 2Printing width: 1050mm-1500mm, 3 Installation plate: shaftless pneumatic clamp - details see: https://www.machineto.com/high-speed-computerized-color-register-rotogravure-machineryydj200g-10074888
Type:Rotogravure Printing Machine,Packing MachineCondition:NewPlace of Origin:Shaanxi China (Mainland)Brand Name:Dadong
Model Number:YDJ200GUsage:OtherAutomatic Grade:AutomaticColor & Page:Multicolor
Certification:ISO9001:2000Warranty:1 yearPlate Type:GravurePrinting color:9~16 color
Max. printing width:1100mm
High-speed computerized color register rotogravure machineryYDJ200G
contact supplier for High-speed computerized color register rotogravure machineryYDJ200G


Substrate

PVDC 35~60um PET 12~60um OPP 20~60um

BOPP 20~60um PE 25~100um PA 12~50um

CPP 20~60um combination film 15~60um

and other same characteristic films

Main machine data

Installation plate: shaftless pneumatic clamp

Rewinding and unwinding: internal turret

Printing colors: 9~16 colors

Plate cylinder diameter:Φ120mm-300mm

Rewinding and unwinding diameter:Φ600mm

Register accuracy: vertical≤0.10mm(auto)

lateral≤0.1mm(electric)

Main features:

1 shaftless pneumatic clamp for plate installation,

2 two- position nonstop reel changing without speed changing, automatic reel

cutting and splicing

3 pre-alarming before reel changing

4 tension controlled by dancer-roller, automatic rewinding tension weakening

5electric transverse registration, automatic longitudinal registration

6pre-registration before printing, advanced ink-transferring roller system

7centralized control by PLC and Human-machine interface.

High-speed computerized color register rotogravure machineryYDJ200G
Packaging Detail:Wooden case/wooden pallet
Delivery Detail:90 days after receive the deposit
