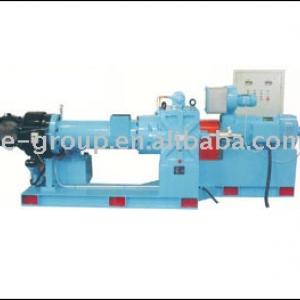

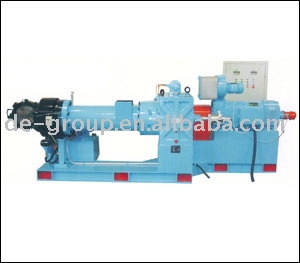

High Quality Strainer

Usage:Strainer is mainly used for strain filtrate rubber sundries. - details see: https://www.machineto.com/high-quality-strainer-10340865

Condition:New	Type:Rubber Extruder	Place of Origin:Jiangsu China (Mainland)	Brand Name:Double elephants
Model Number:200	Voltage:380V	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas

Technical data of strainer:

Screw diameter	150	200	250
Screw active length	780mm	1030mm	1287mm
Screw length-width ration	1:5.15	1:5.15	1:5.15
Screw rotation speed	43r/min	10~45r/min	10~40r/min
Yield	350~450kgs/h	800~1000kgs/h	1500~2000kgs/h
Center height of feeding hole	800mm	950mm	1000mm
Driving motor	30kw	75kw	110kw
Weight	2800kgs	5800kgs	7500kgs
Dimensions(LWH)	29601111950mm	300020001800mm	360020001800mm
