High-quality Stainless Steel Industrial Salt Powder Grinder

1.Industrial Salt Grinder, 2.Stable Operation, 3.High Efficiency / Energy Saving, 4.GMP Standard - details see: https://www.machineto.com/high-quality-stainless-steel-industrial-salt-powder-grinder-10050634
Condition:NewPlace of Origin:Shandong China (Mainland)Brand Name:Double WinModel Number:FSZ160/230/320/370/450/600 Series
Usage:SaltType:Salt millVoltage:110v~380v customizablePower(W):1.5~22kw customizable
Weight:170kg~700kgDimension(L*W*H):1123mm*500mm*962mm~1500mm*957mm*1275mmCertification:CCC, ISO9001,CE,Industrial Salt GrinderWarranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseasCapacity:30~1500kg/hMaterial:Best-quality Stainless SteelApplication:Powder Making
High-quality Stainless Steel Industrial Salt Powder Grinder
contact supplier for High-quality Stainless Steel Industrial Salt Powder Grinder


High-quality Stainless Steel Industrial Salt Grinder

Operating Principle

The principle of the High-quality Stainless Steel Industrial Salt Grinder mechanical transmission, so that the relative motion between activities gear and fixed gear, the material from the hopper through feeder automatically added to the grinding chamber, activity gear and fixed gear shear the friction and material impact to achieve the combinedeffects of crushing, the crushed powder through the screen controlled by the powder outlet to fall into the powder collector bags.

The Main Features

·Compact shape, parts reqair and replacement easy

· Mechanical stability, low energy consumption, crushed, crush phenomenon, not raise he crushed temperature

·Lower energy consumption,compared with the traditional omnipotent pulverize, it could save 30% power

·Equipment structure compact, floor space small

· In crushing box no stitch line, no dead space, easy to unpick and wash, disinfect, change variety expediently, meet with the GMP standard

· The scope of shatter granularity, the grain diameter of end product is 20-200 item scope adjusted arbitrarily; machinery roundly, the output is 15~1500kg/h machinery optionally

·Negative pressure products, no dust pollute, good environment

Technology and Parameters

TypeFSZ160FSZ230FSZ320FSZ370FSZ450FSZ600
Contour imension·mm1123×500×9621236×500×10671324×500×11181542×743×11761542×743×12261500×957×1275
Spindle speed·r/min700057004500390032002800
Rotor Work Diameter·mm160230320370450600
Motor·kw1.5~2.23~45.5~7.57.5~1111~1518.5~22
Weight·kg170250350400500700
Function·kg/h10~12030~12050~30070~400150~600300~1500
Feeding size·mm≤20≤20≤20≤20≤20≤20
Shatter Fineness·item10~12010~12010~12010~12010~12010~120
Choose Bearing620562076207630963096312

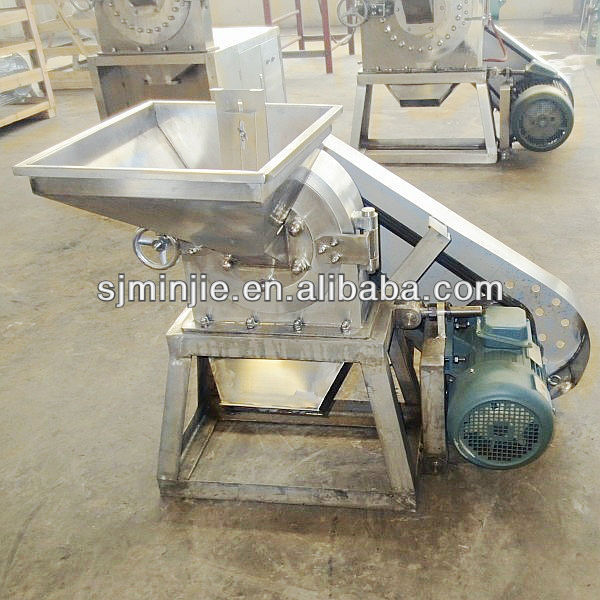

Product Appearance

Applications

The High-quality Stainless Steel Industrial Salt Grinder is widely used in this filed: Chemical industry, mining, abrasive, refractory material, battery materials, metallurgy, building materials, pharmacy, ceramics, food, the agricultural chemicals, feed, new materials,environmental protection and the superfine shatter,scatter and particle reshaping of the all kinds of dry power material.

Our Advantages

1.Strong Technical Support

More than 80 professional and technical personnels,over 10 senior engineers

Top universities and institutes cooperator

Our company is attached to Shandong Agricultural Machinery Research Institute

2.Top Quality Assurance

Strict control and selection of materials

Advanced equipments and first-class production technology

Sound management system and solid economic strength

3. Advanced Testing Measures

Exclusive R&D andtesting center

Exclusive professional platform

Strict quality Control System, including in-process inspection in every process and final inspection

4.Impeccable after-sale system, sincere and all-aspect service

Our market concept isMoving customers by heart!

We specialize in technology research and development,we can offer the best possible machining solution for all your requires. We are confident that your requirements will be perfectly satisfied.

We welcome your inquires. Please feel free to contact us!

High-quality Stainless Steel Industrial Salt Powder Grinder
Packaging Detail:Standard export packing; Wooden box; Custom packaging.
Delivery Detail:1~2 weeks after receiving deposit; As customers requirements.
